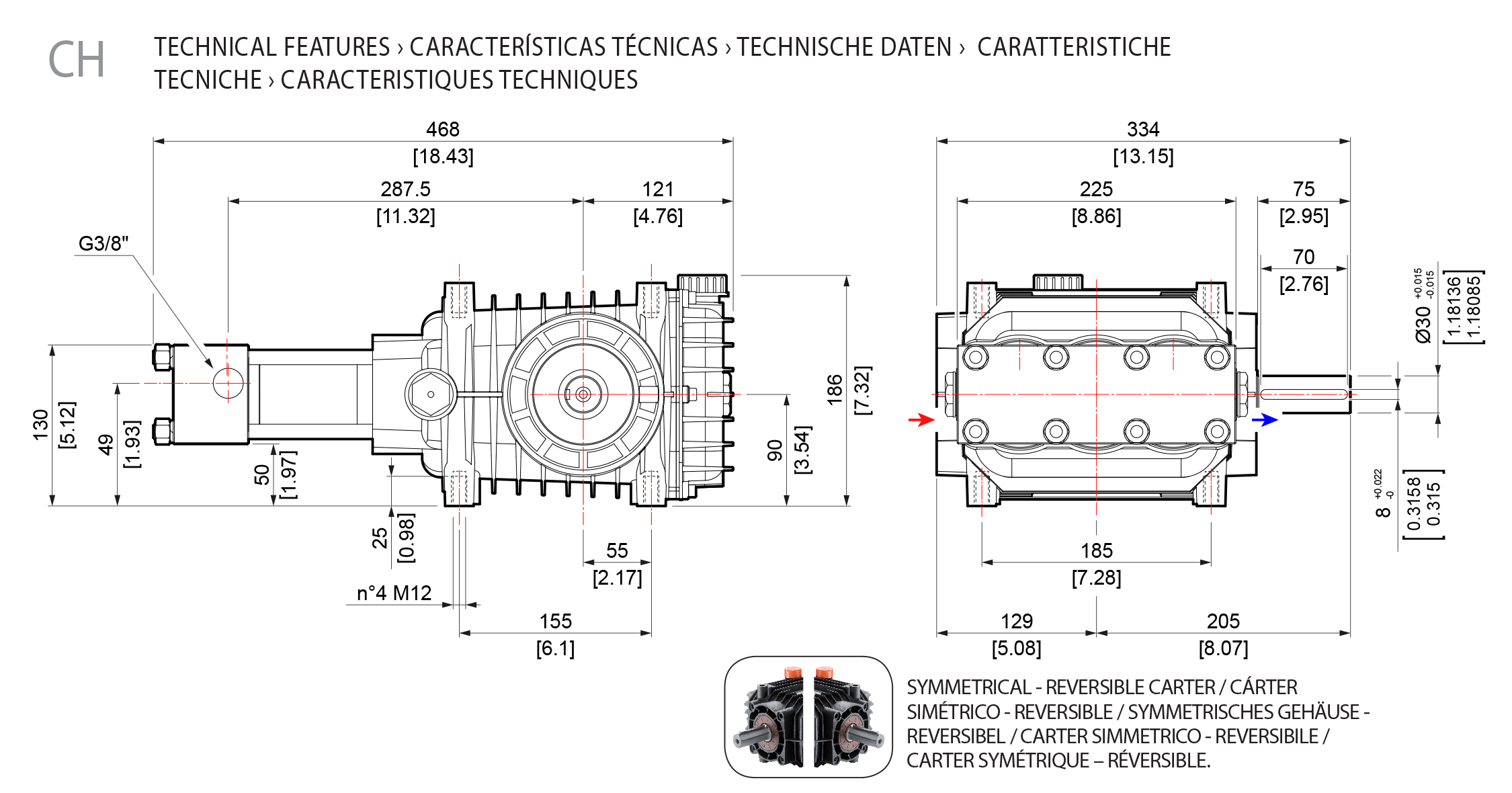

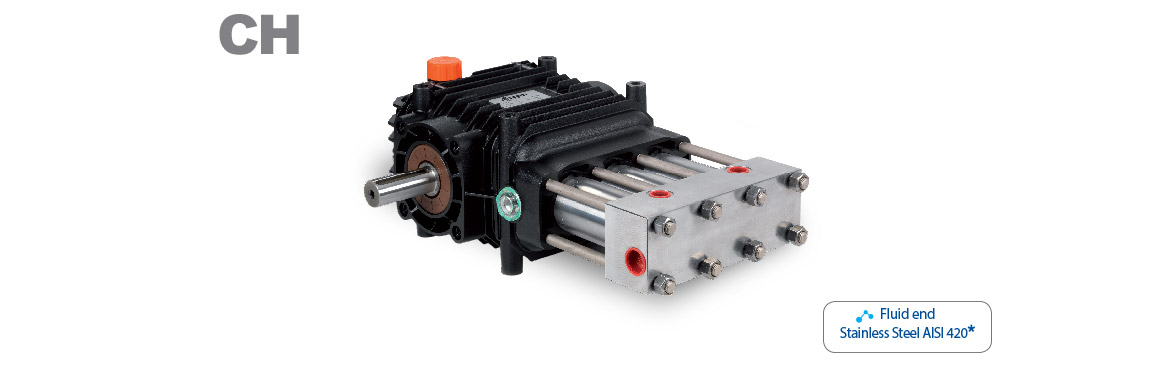

CH

  • Pump body: anodized aluminium alloy

  • Symmetric crankcase featuring top and bottom fixing for easy right to left shaft conversion

  • Head: stainless steel

  • Camshaft: steel

  • Splash lubrication

  • Shaft support bearings oversized for long duration

  • Connecting rods: special anti-friction light alloy

  • Guiding piston: stainless steel

  • Solid ceramic plungers

  • Suction/delivery valves in stainless steel

  • Seals: high dependability

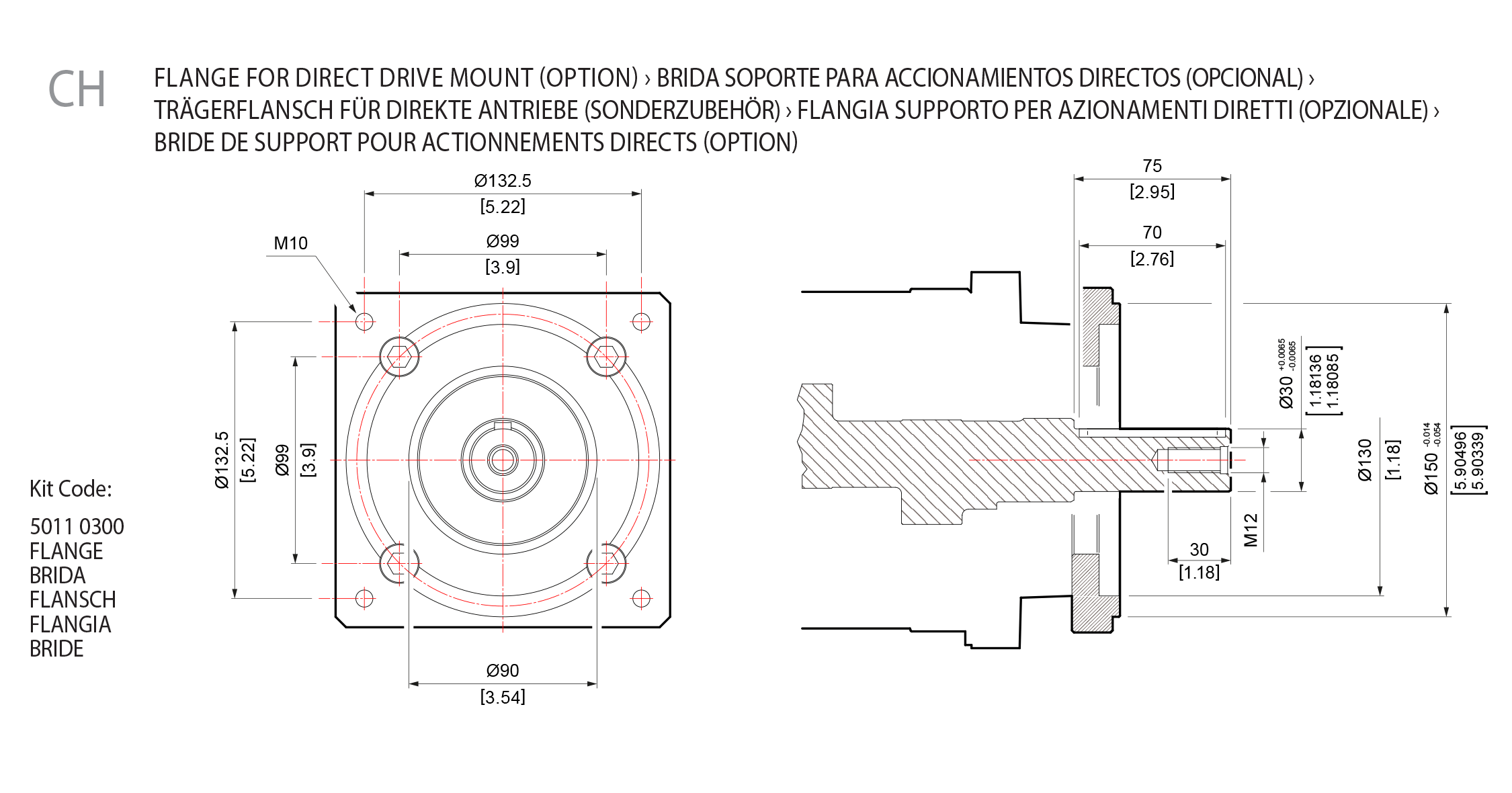

  • Versions in direct drive mount with shaft positionable on the right or left or through shaft.

Routine maintenance includes easy operations such as: oil check & change, check and possible replacement of seals.

Double shaft version available on request

Max Inlet pressure: 3 bar – 43,5 p.s.i.

Oil Capacity: 2,51 l 15W 40

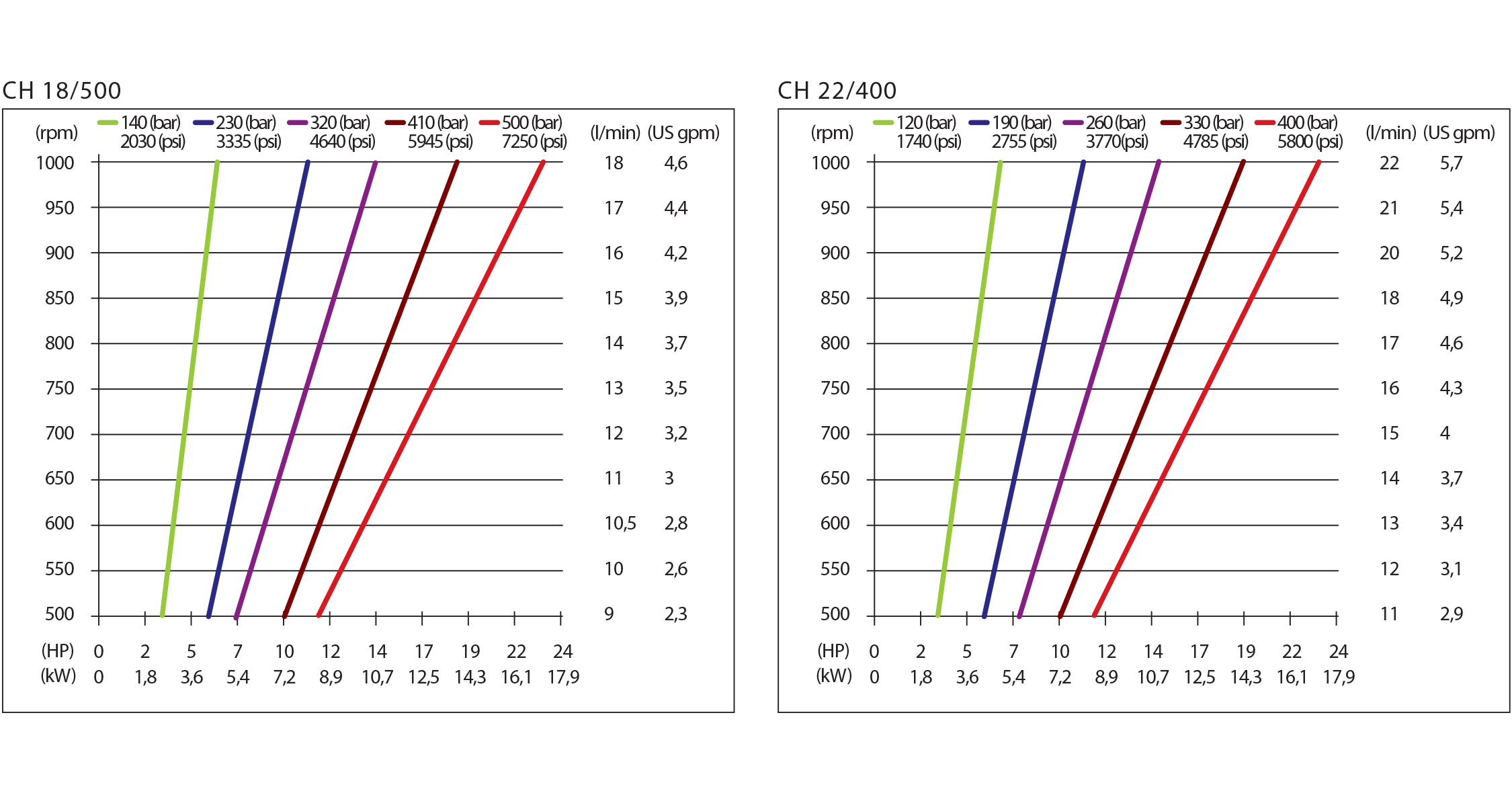

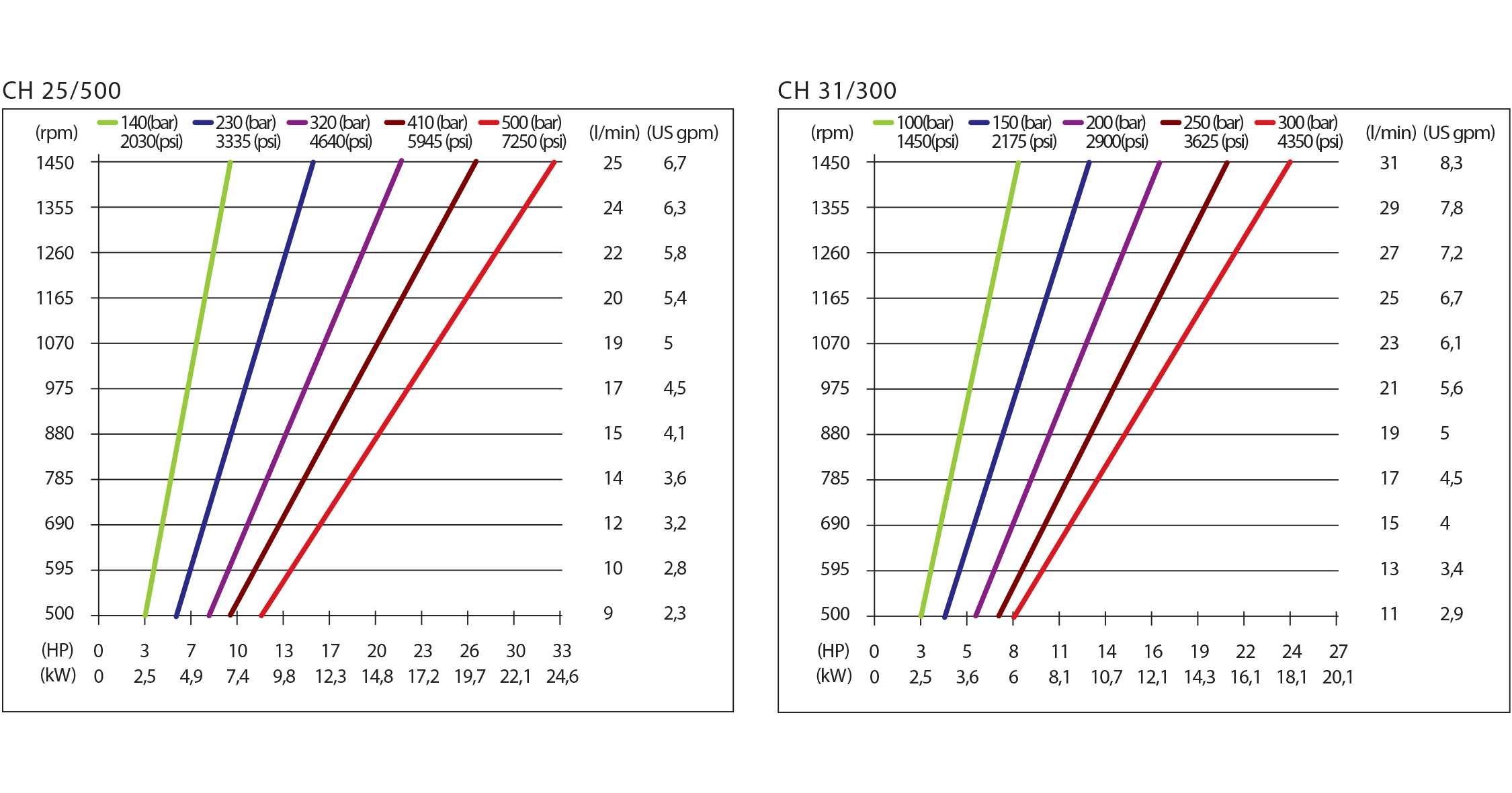

Performances refer to theoretical delivery with 100% volumetric efficiency. For continuous or heavy-duty use, contact our technical department

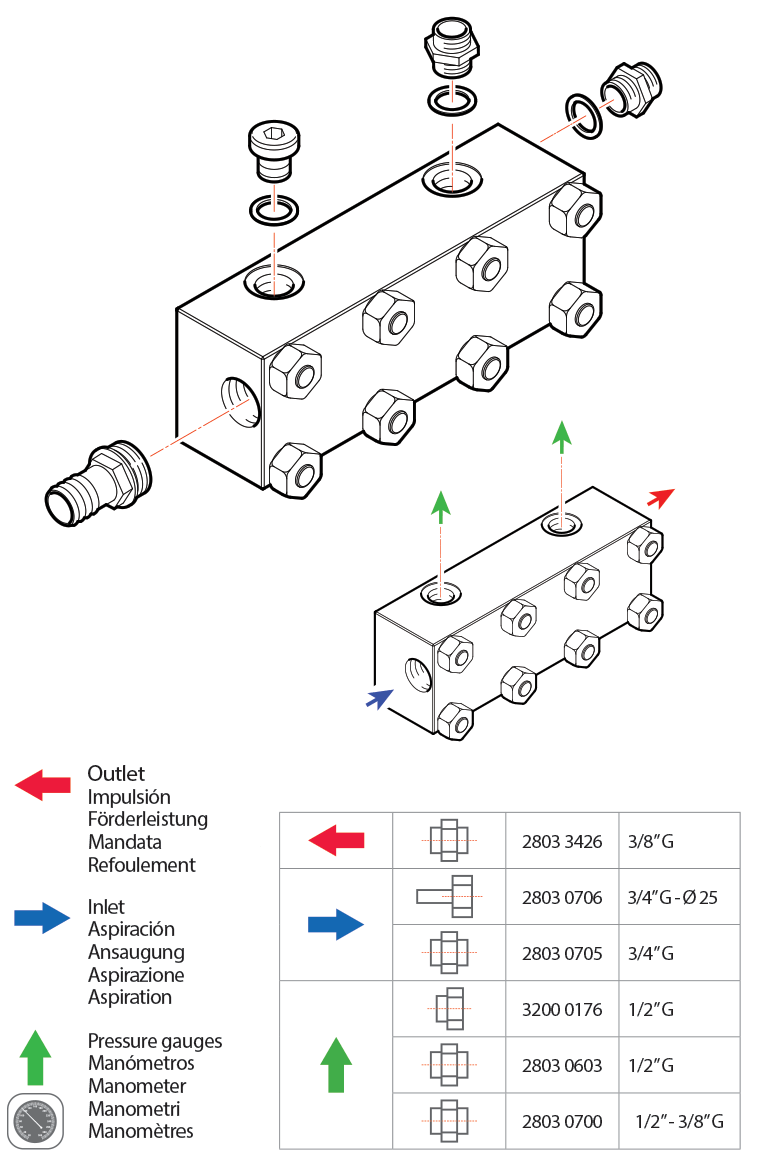

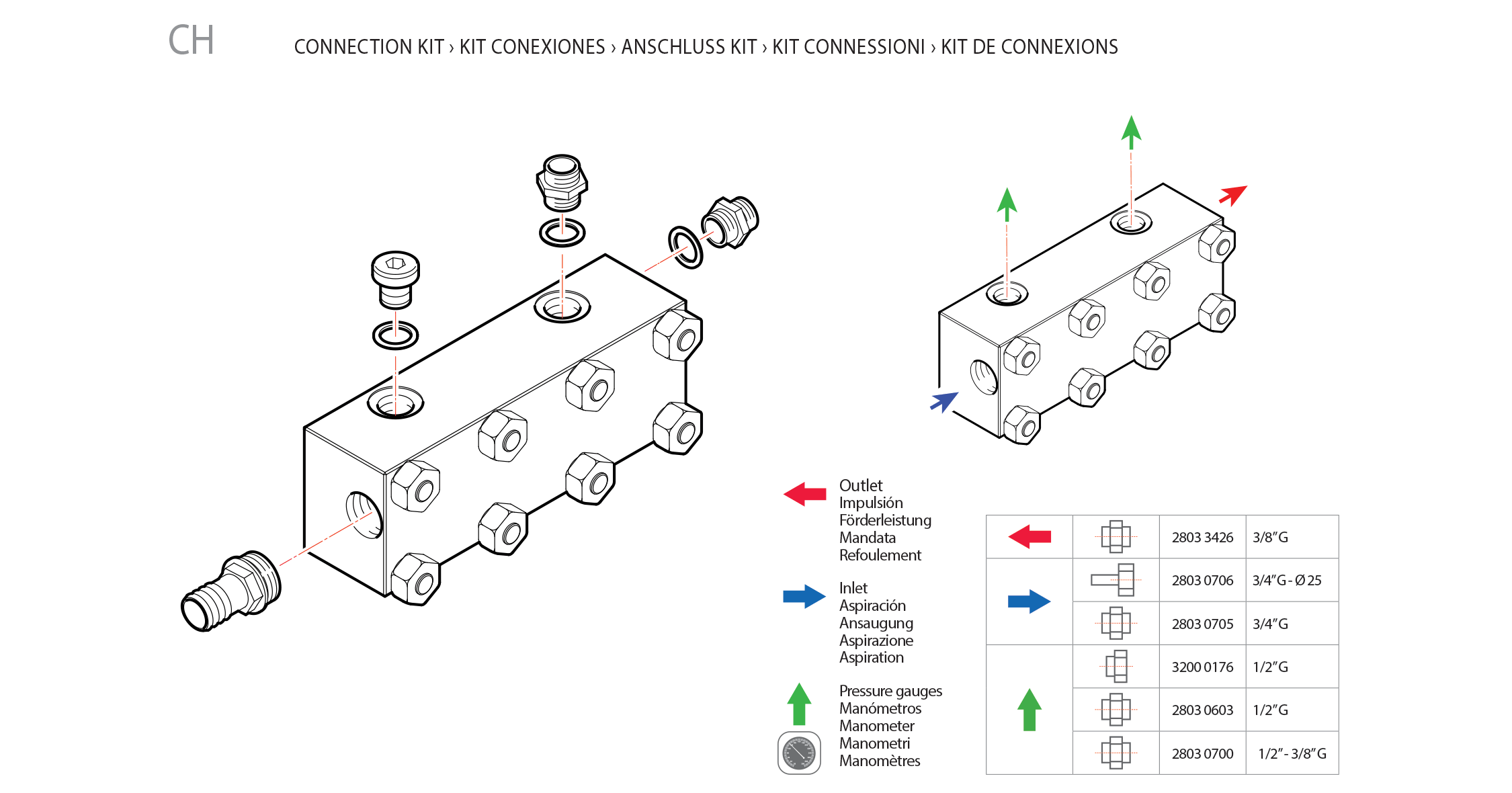

Connection Kit

documents

Download Data Sheet

Download Spare Parts

Download Manual

Download General Part
