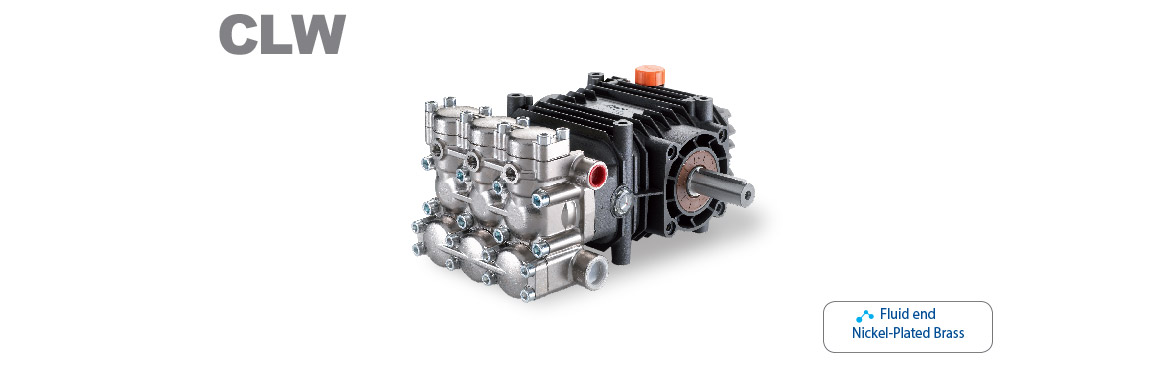

CLW

  • Pump body: anodized aluminium alloy

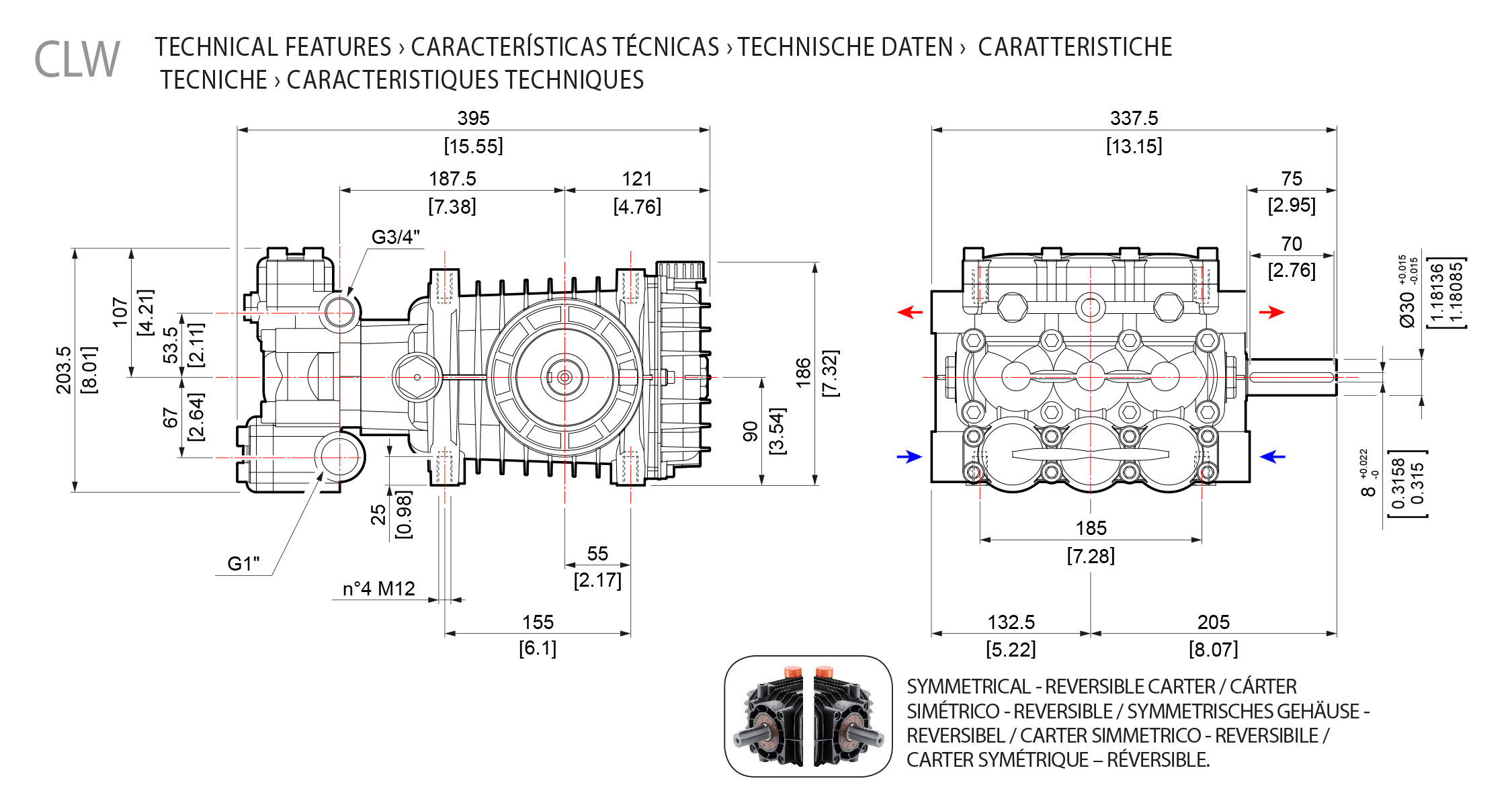

  • Symmetric crankcase featuring top and bottom fixing for easy right to left shaft conversion

  • Head: brass with chemical nickel plating

  • Camshaft: steel

  • Splash lubrication
  • Shaft support bearings oversized for long duration
  • Connecting rods: special anti-friction light alloy
  • Guiding piston: stainless steel
  • Solid ceramic plungers
  • Suction/delivery valves in stainless steel and acetal resin
  • Seals: high dependability

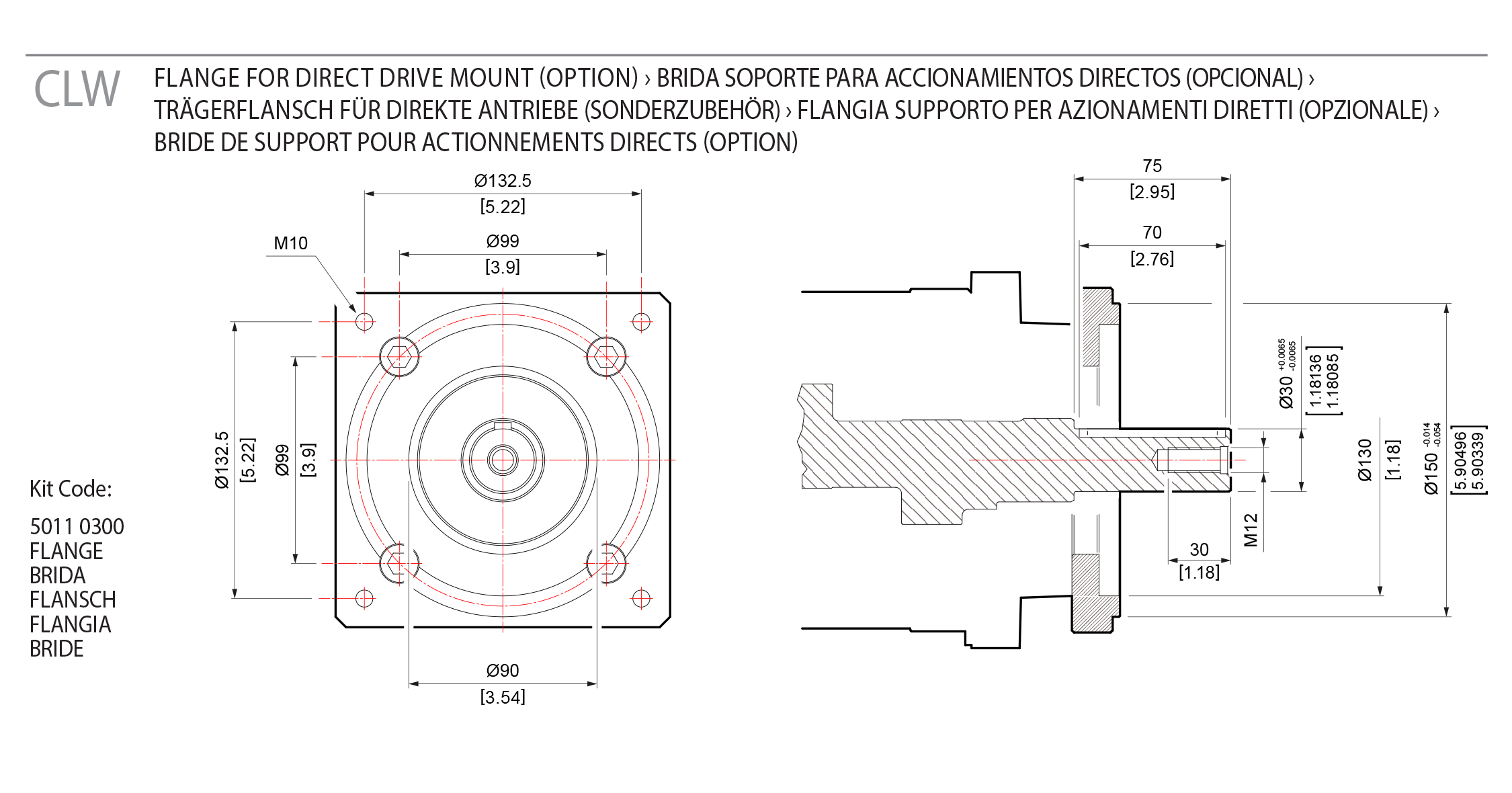

  • Versions in direct drive mount with shaft positionable on the right or left or through shaft.

Routine maintenance includes easy operations such as: oil check & change, check and possible replacement of seals.

Double shaft version available on request

Flushing system available on request

PULSE system on request (only with brass head)

Max Inlet pressure: 3 bar – 43,5 p.s.i.

Oil Capacity: 2,51 l – 15W 40

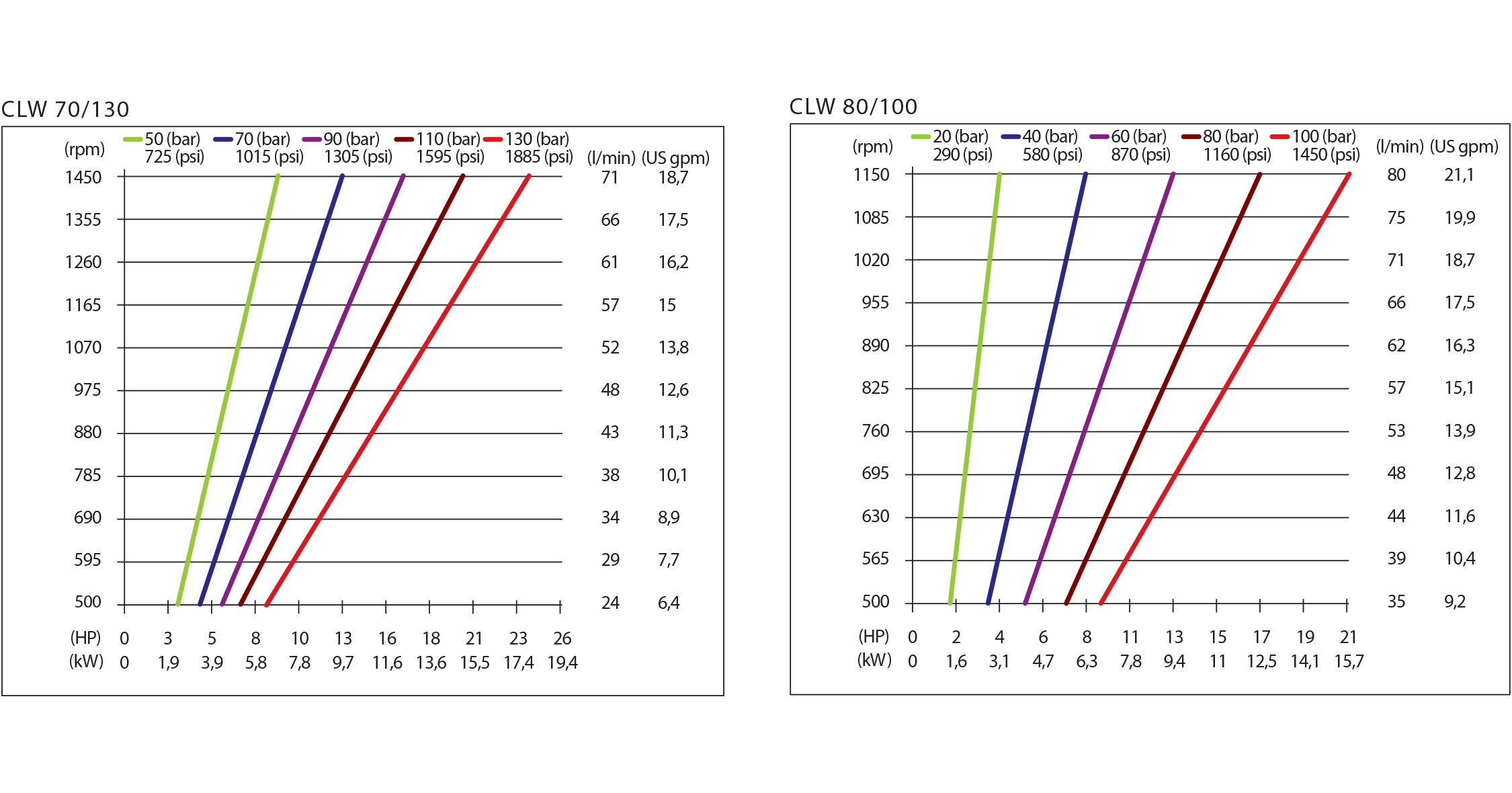

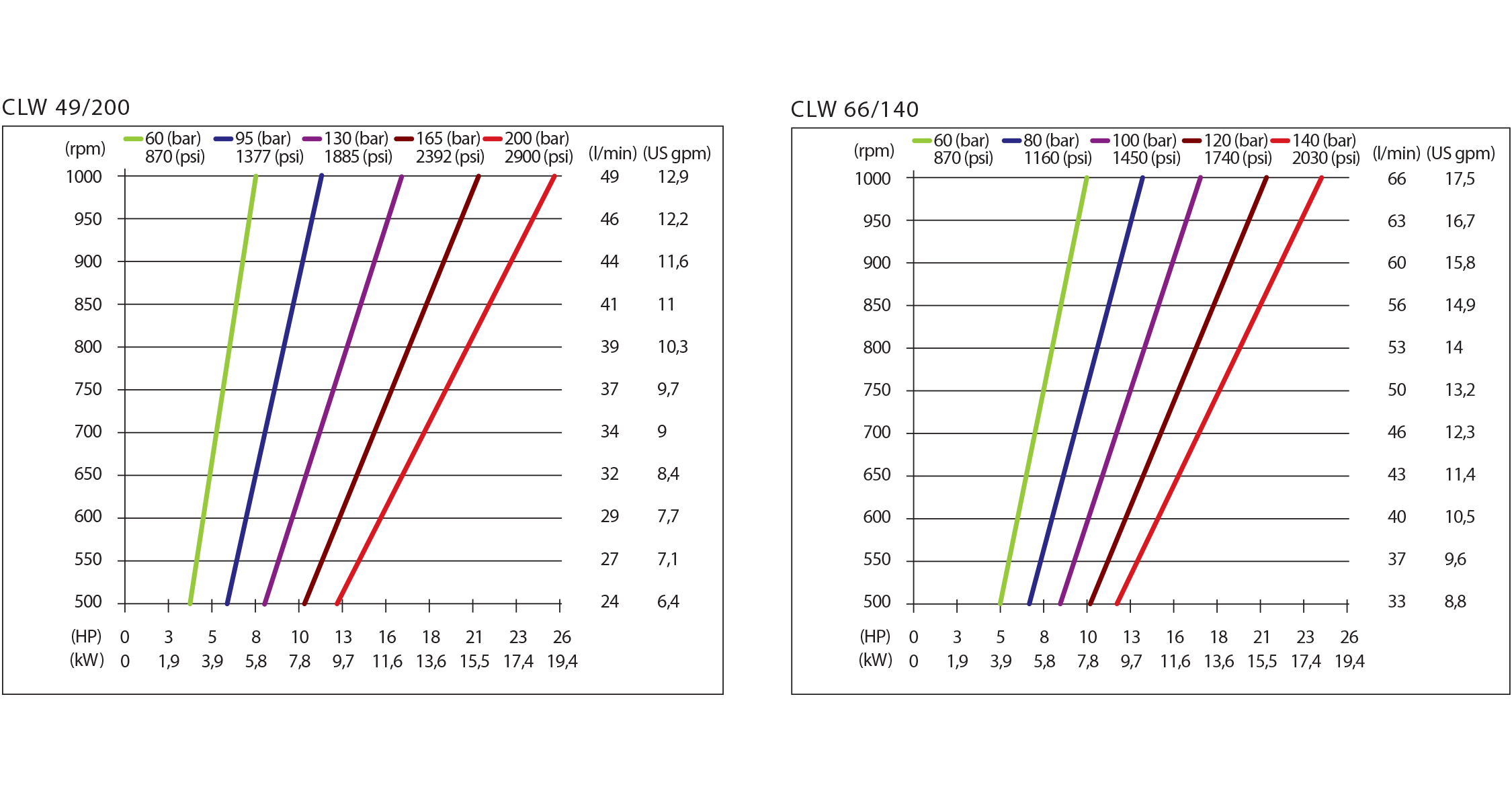

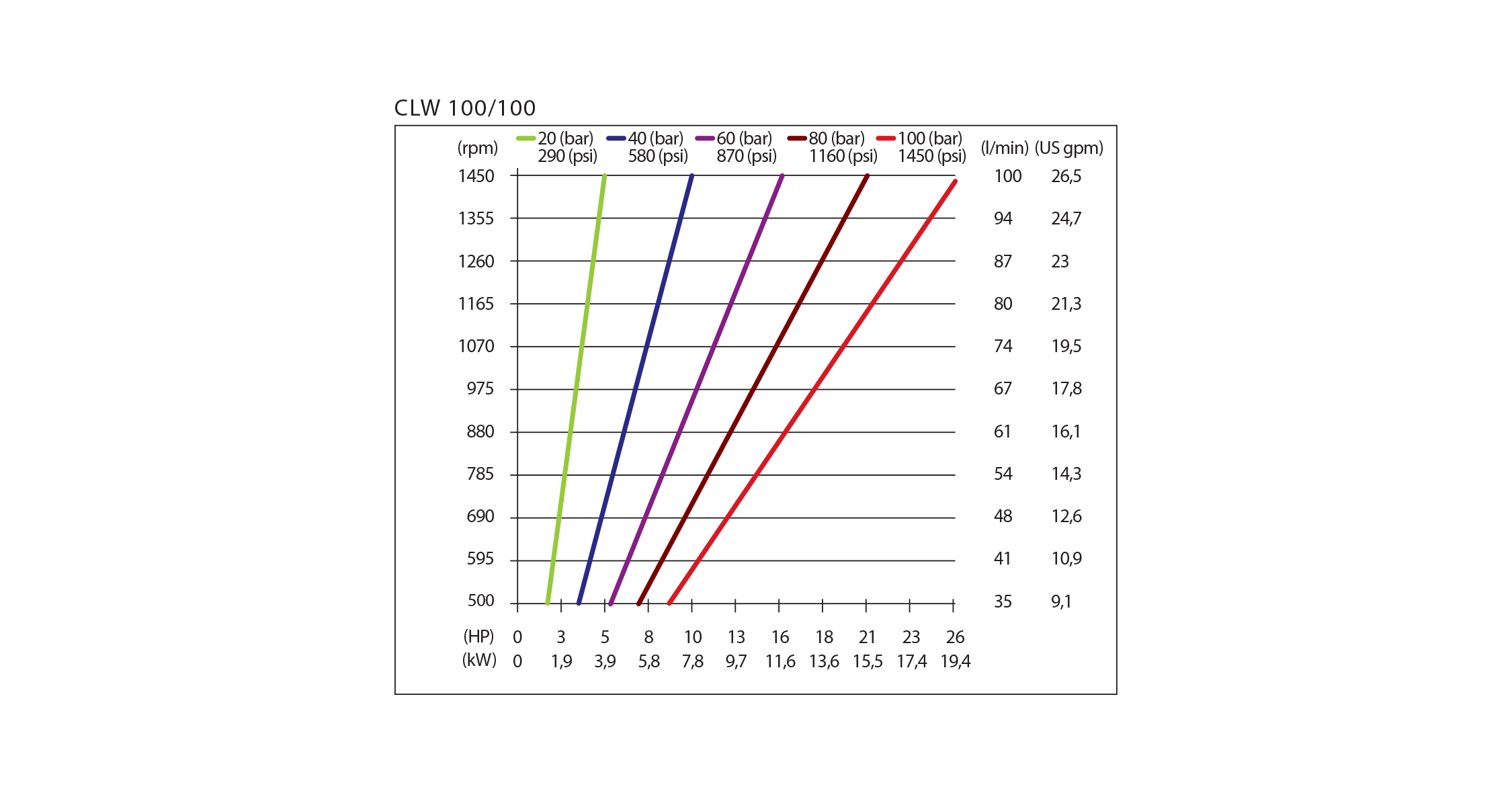

Performances refer to theoretical delivery with 100% volumetric efficiency. For continuous or heavy-duty use, contact our technical department

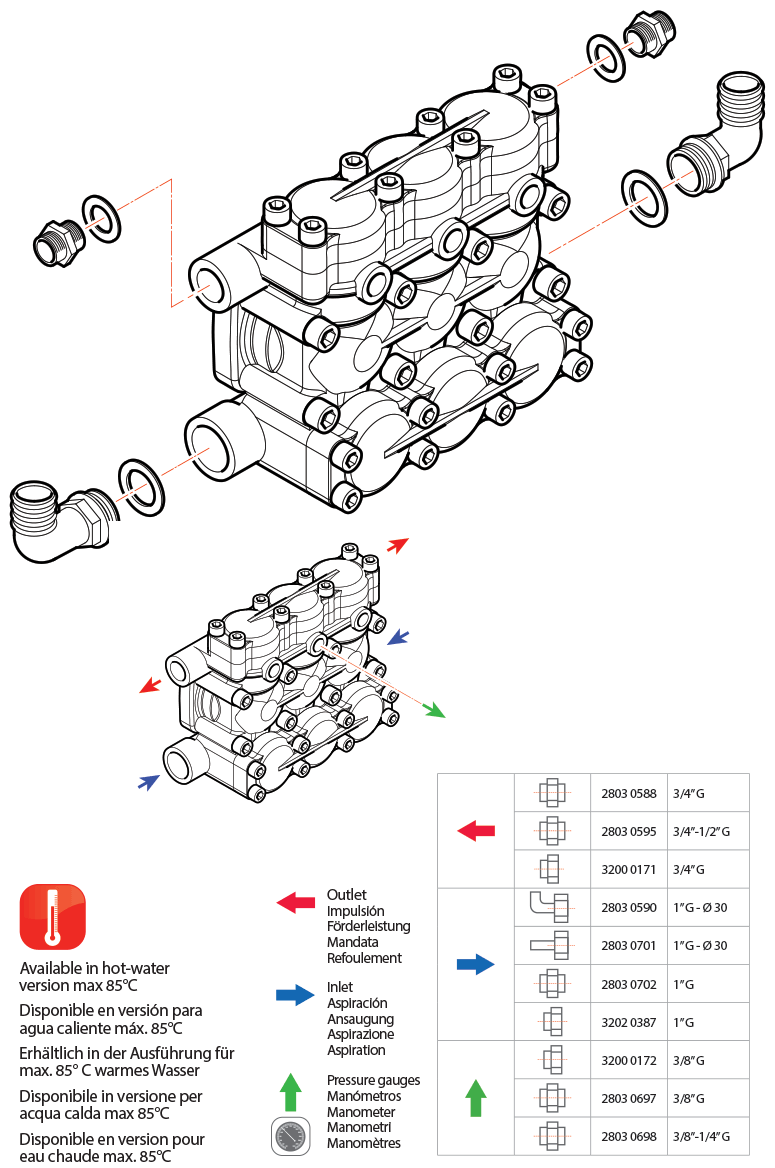

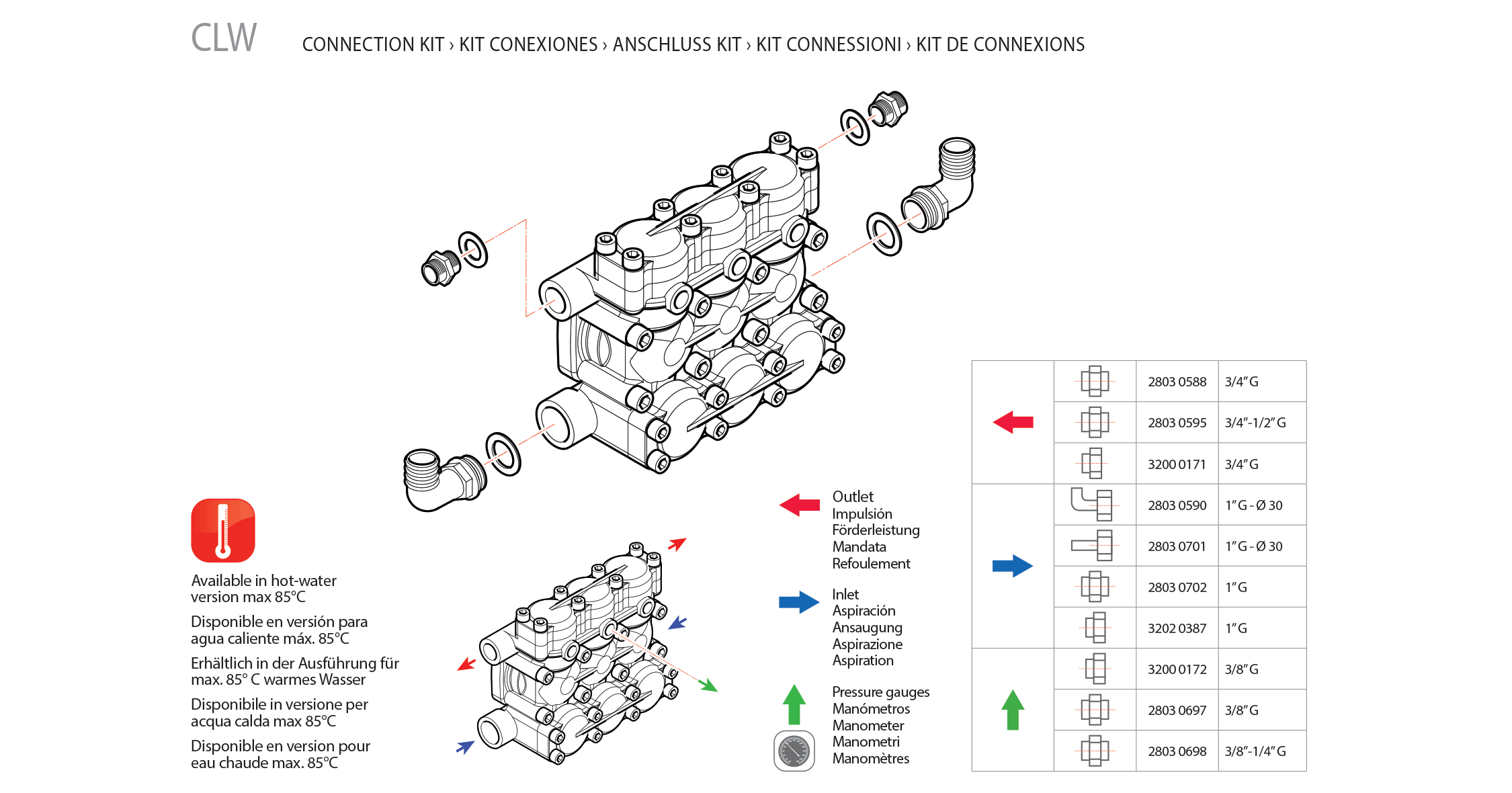

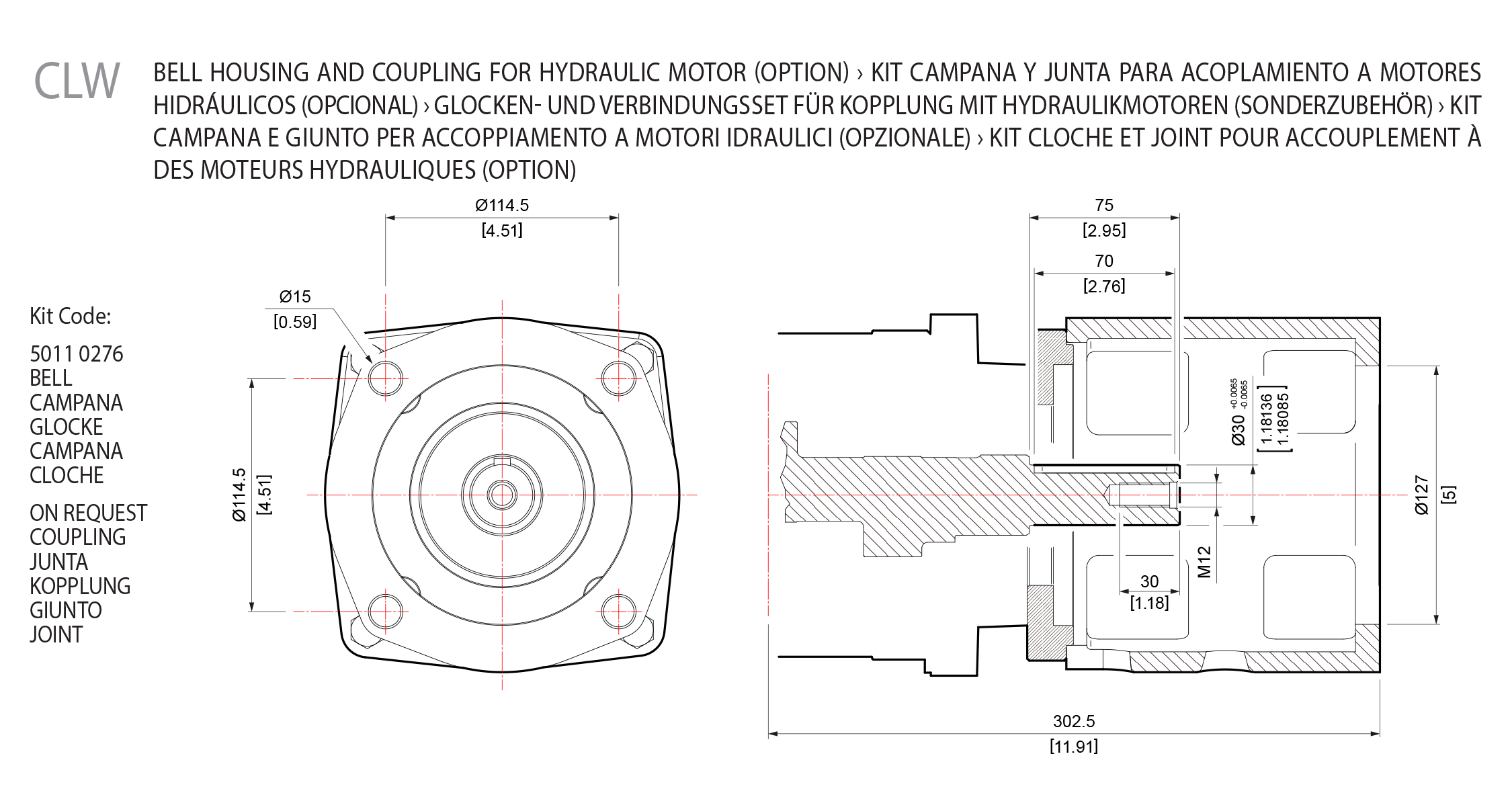

Connection Kit

Connection kit clw pumps

documents

Download Data Sheet

Download Spare Parts

Download Spare Parts Hot Water

Download Manual

Download General Part
