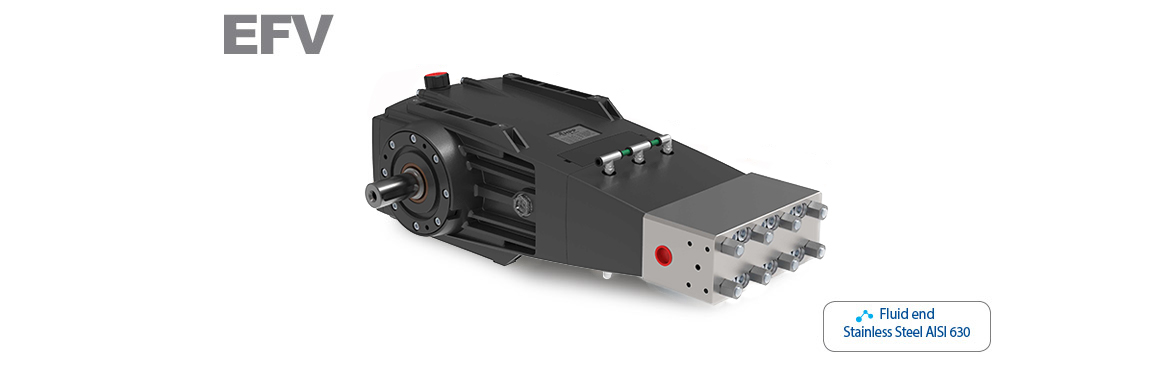

EFV

Triplex plunger pump in line

  • Pump body : aluminium alloy

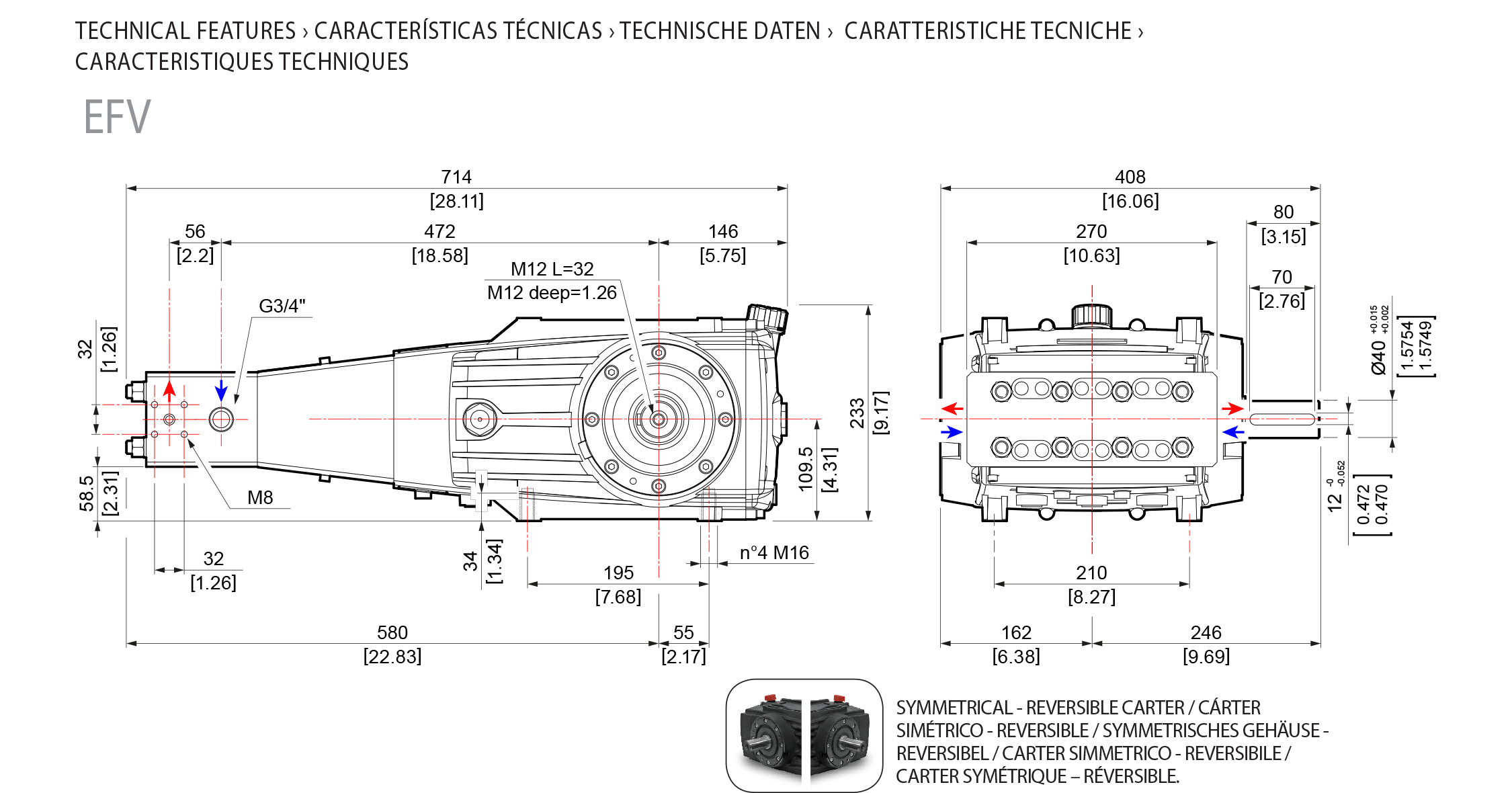

  • Symmetric crankcase featuring top and bottom fixing for easy right to left shaft conversion

  • Head: stainless steel

  • Camshaft: forged steel

  • Splash lubrication

  • Shaft support tapered roller bearings oversized for long duration

  • Connecting rods: steel with thin-shell bearings

  • Guiding piston: stainless steel

  • Solid ceramic plungers

  • Stainless steel suction/delivery valves

  • Seals: high dependability

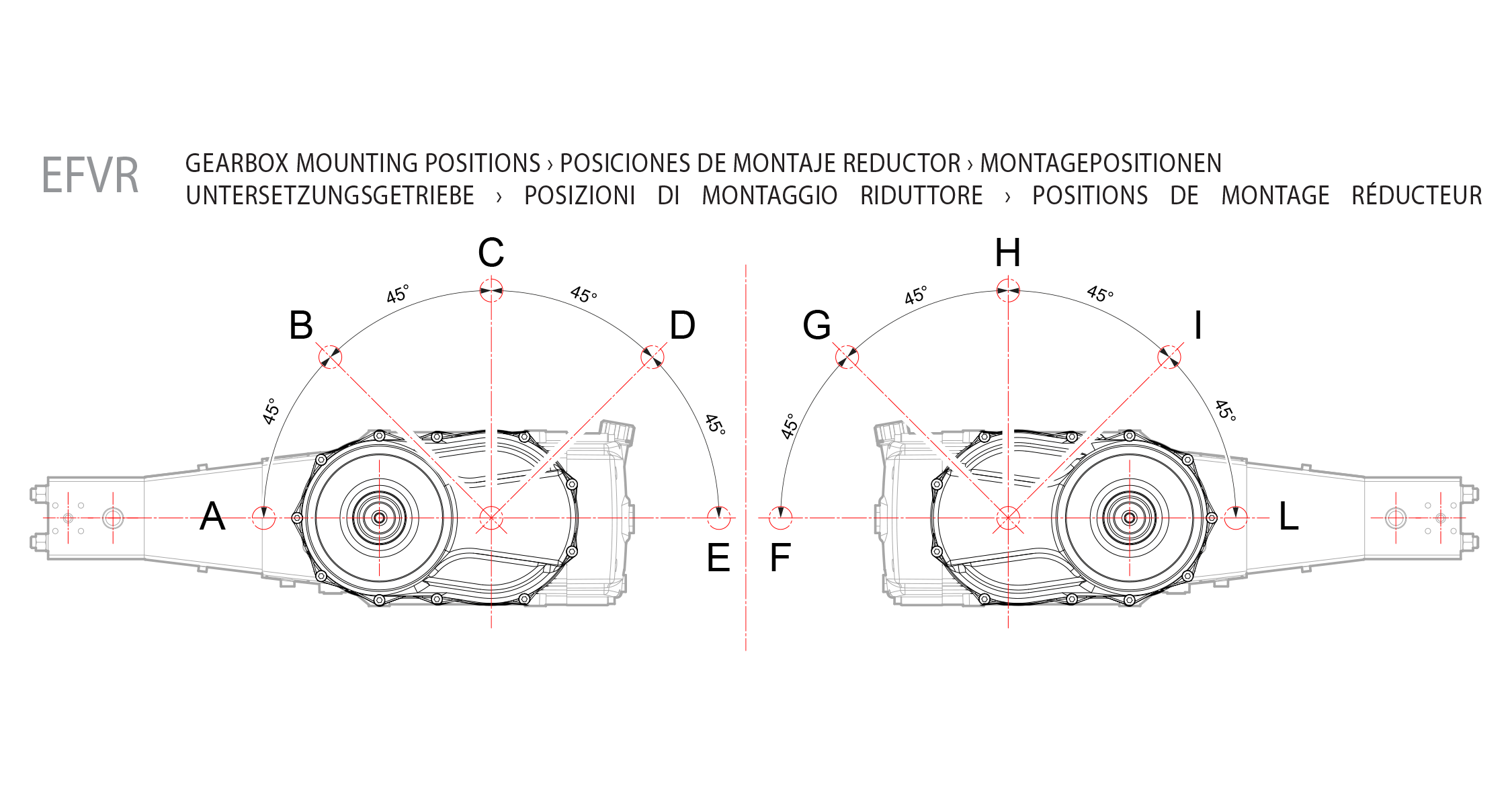

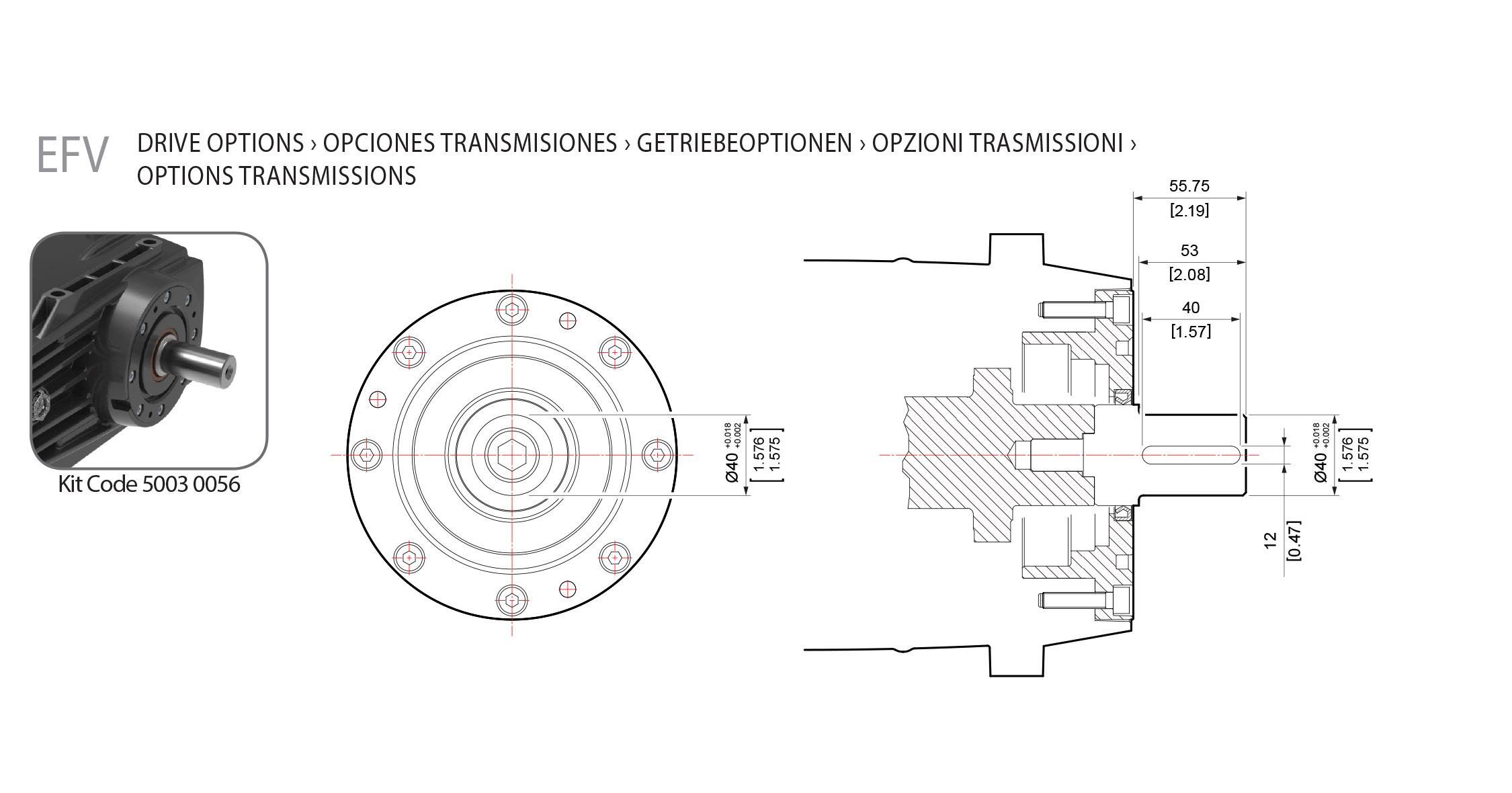

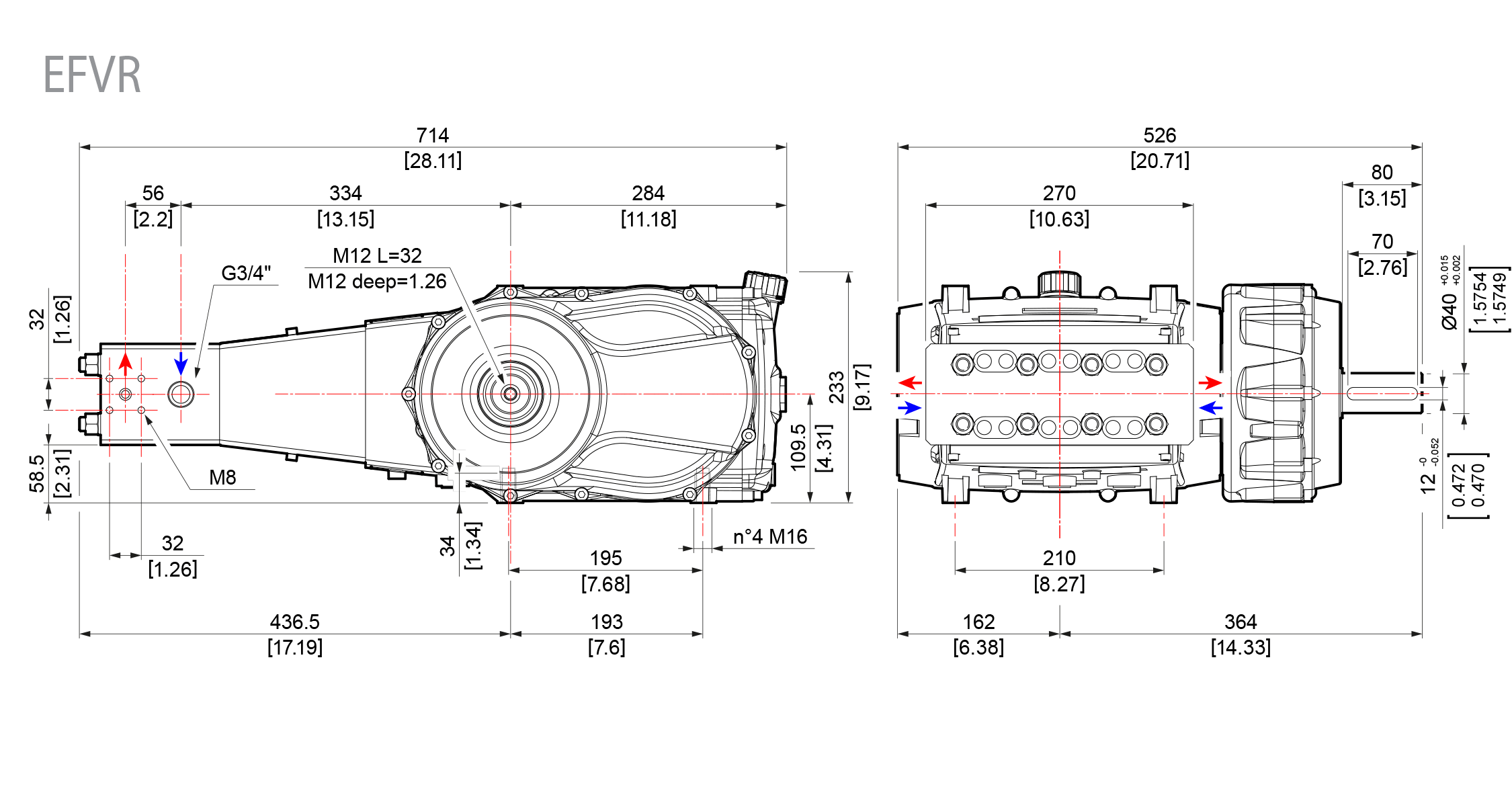

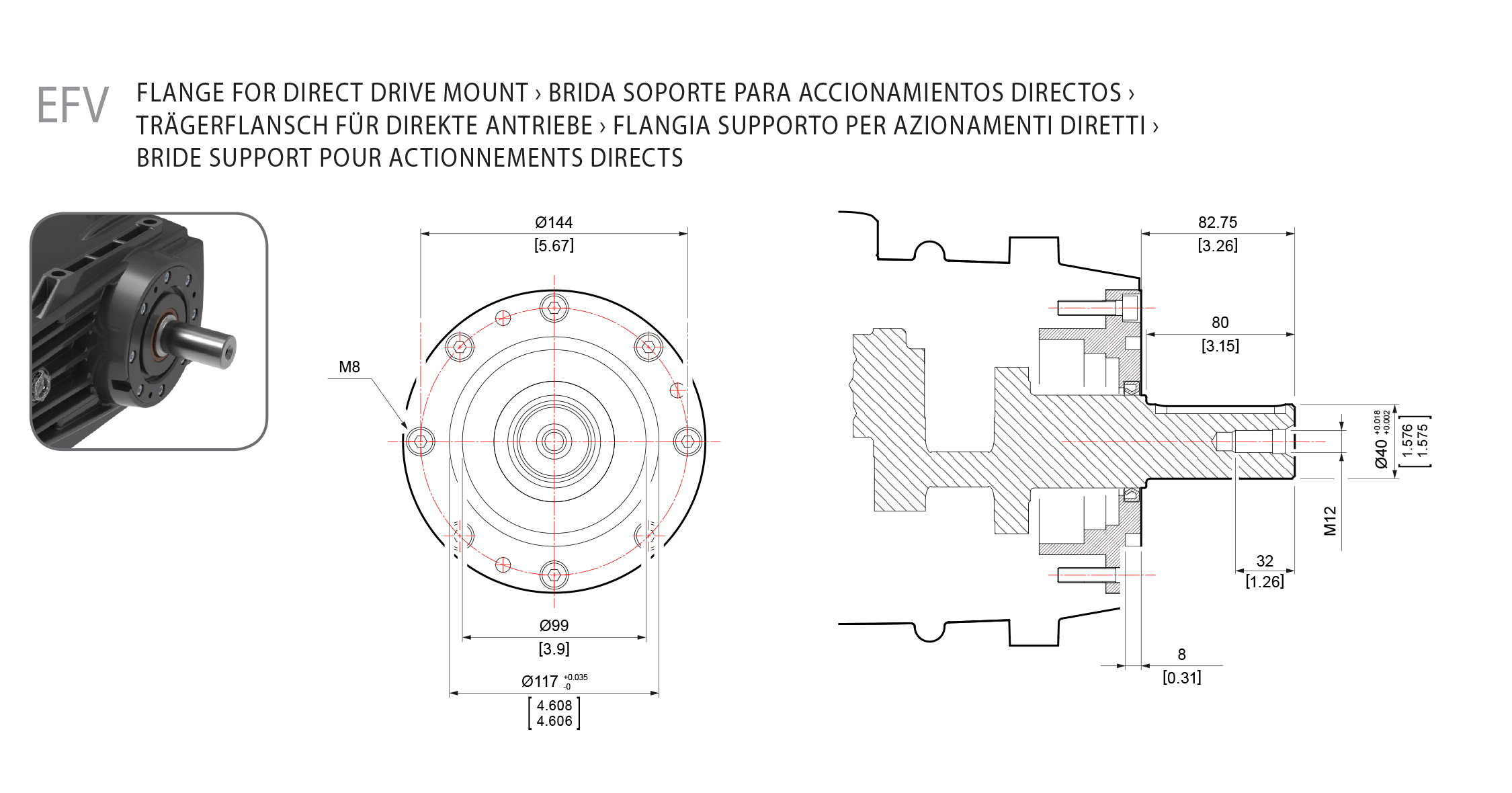

  • Versions in direct drive mount or with side gearbox available in 3 gear ratios and positionable on the right or left of the pump at 0° – 45° – 90° – 135° – 180° from the horizontal plane (see drawing)

Routine maintenance includes easy operations such as: oil check & change, check and possible replacement of seals.

MIN Inlet pressure: 3 bar – 43,5 p.s.i.

Max Inlet pressure: 8 bar – 116 p.s.i.

Oil Capacity: 4,43 l – 80W 90

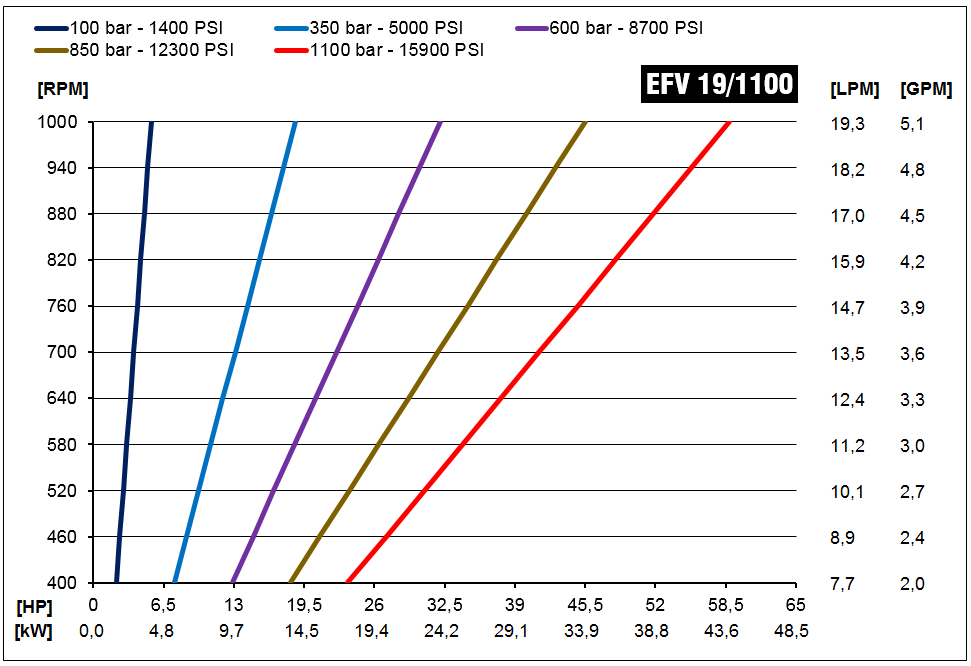

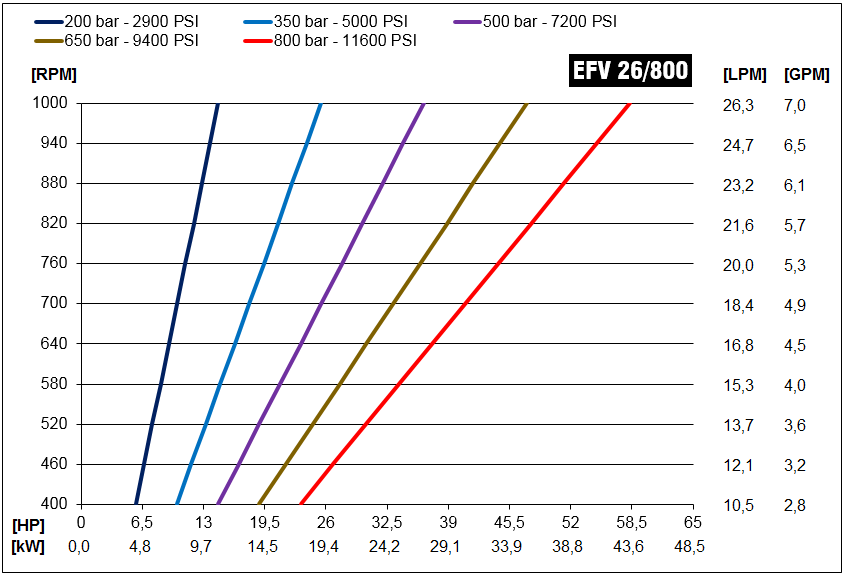

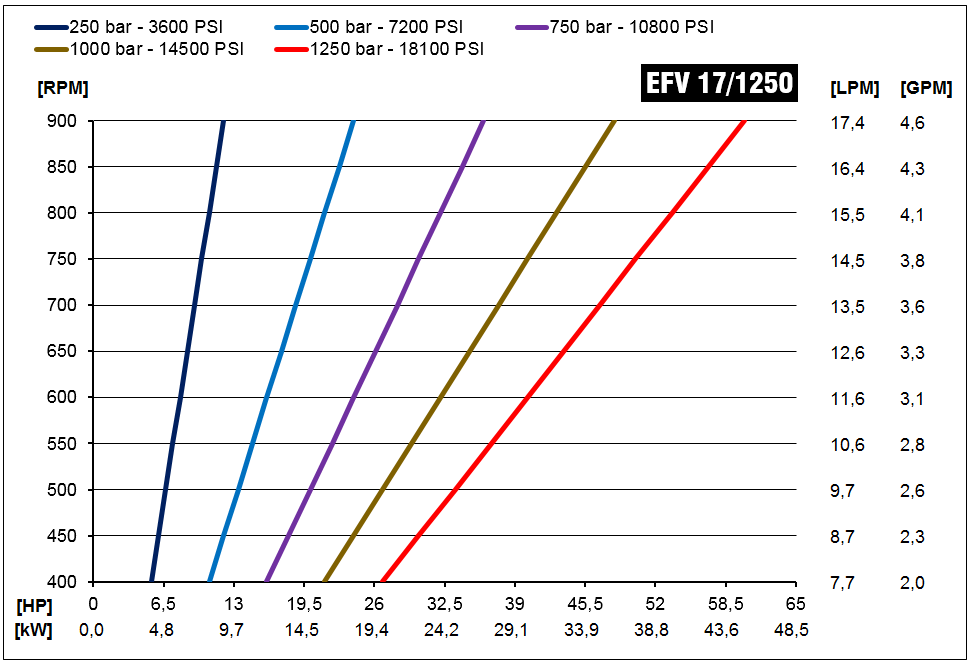

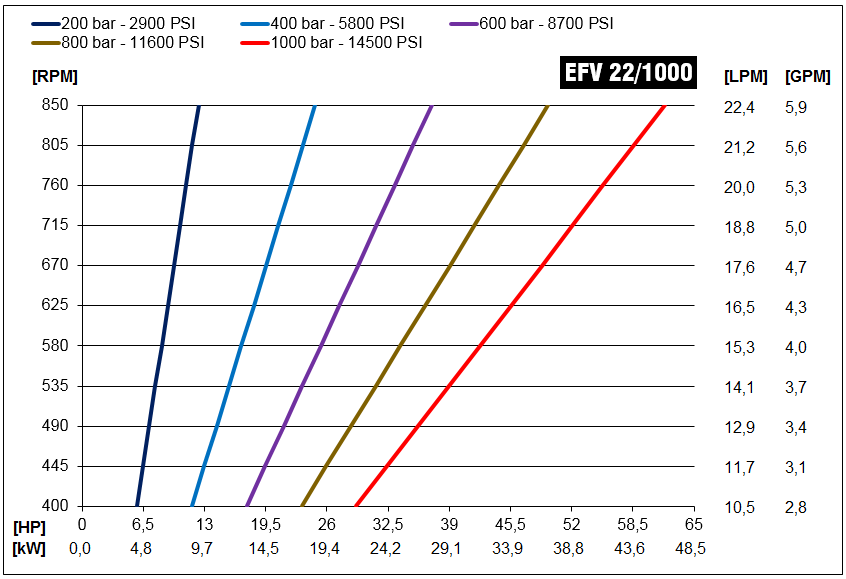

Performances refer to theoretical delivery with 100% volumetric efficiency. For continuous or heavy-duty use, contact our technical department

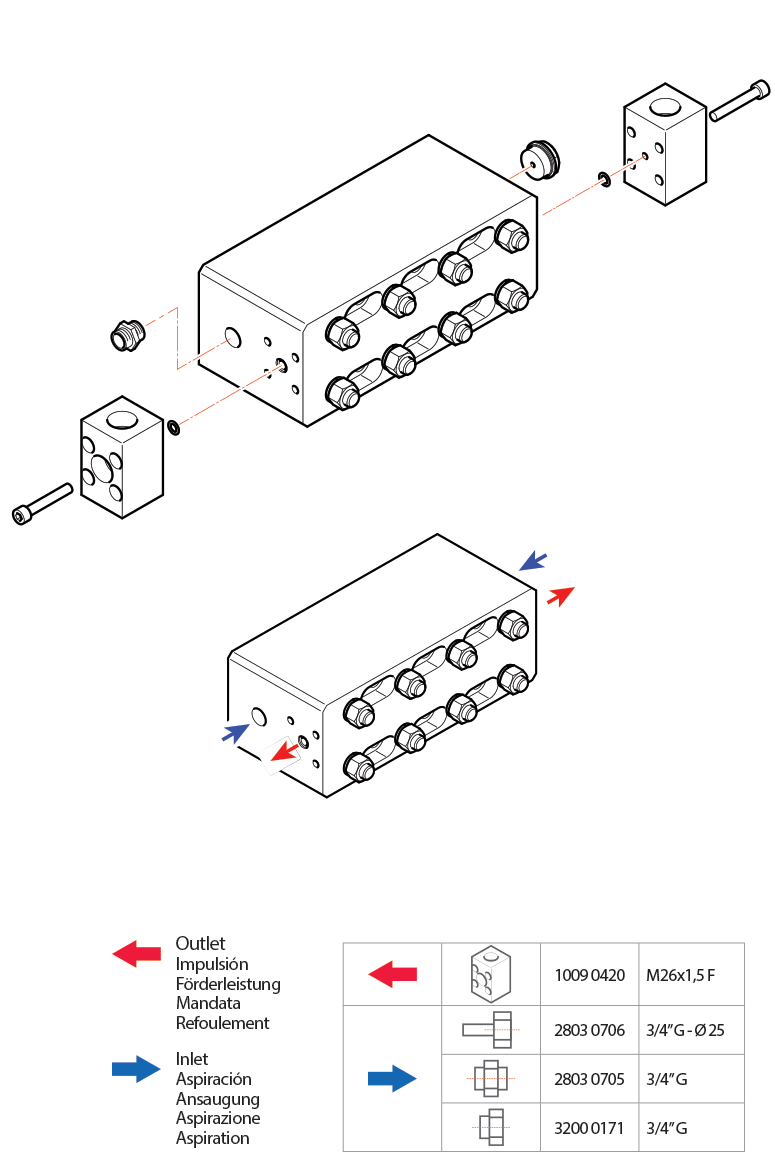

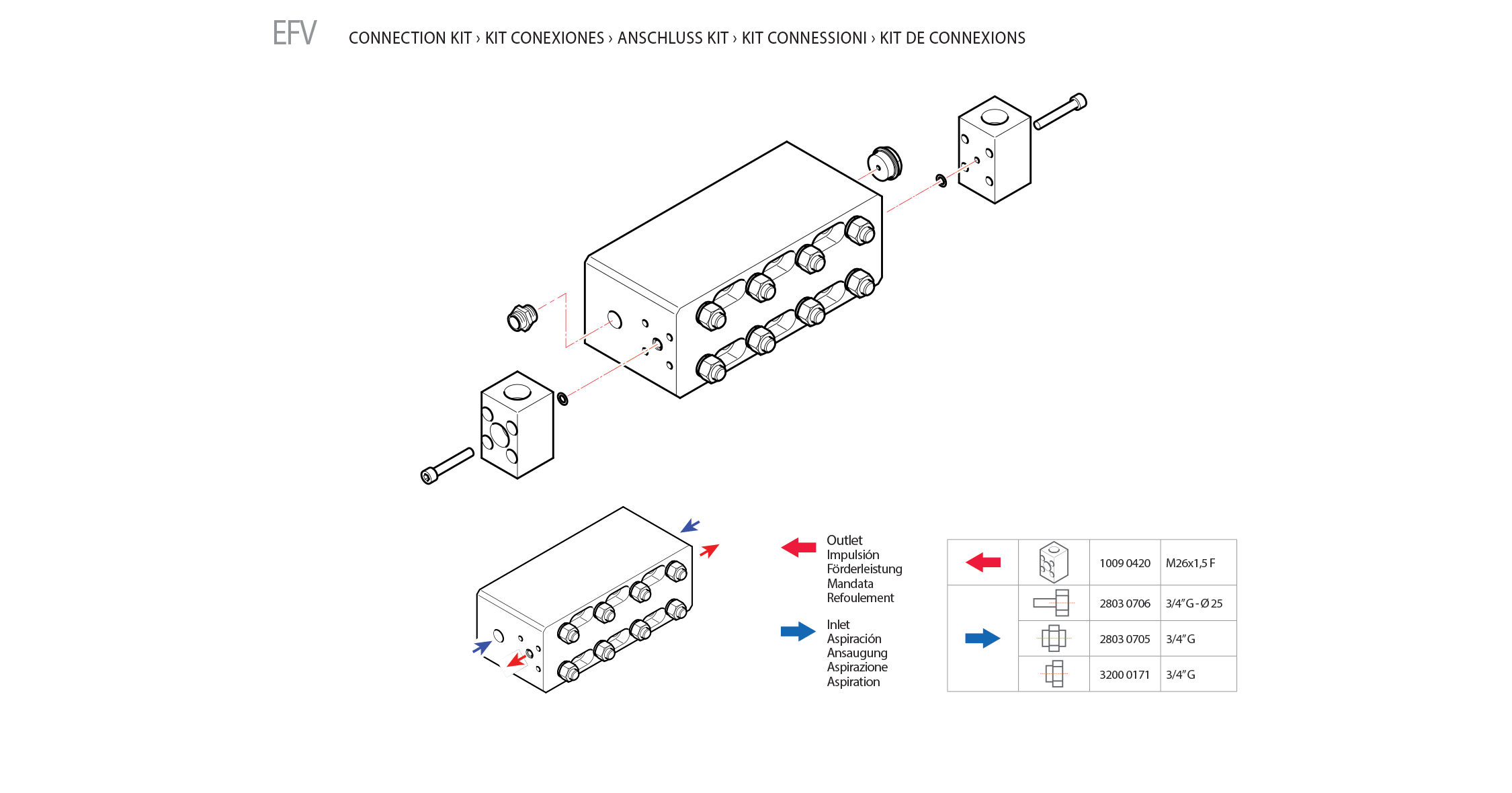

    • Connection Kit

    documents

    Download Data Sheet

    Download General Part

    Download Spare parts
