ET

  • Triplex plunger pump in line

  • Symmetric crankcase featuring top and bottom fixing for easy right to left shaft conversion

  • Shaft support tapered roller bearings oversized for long duration

  • Stainless steel suction/delivery valves featuring spherical design of sealing areas

  • Seals: new high reliability hight pressure seal with low-pressure lubrication and recirculation chamber

  • Pump body: aluminum alloy

  • Head: nickel plated brass

  • Camshaft: forged steel

  • Splash lubrication

  • Connecting rods: special antifriction alloy

  • Guiding piston: stainless steel

  • Solid ceramic plungers

  • Double sight glass oil

Routine maintenance includes easy operations such as: oil check & change, check and possible replacement of seals.

Max Inlet pressure: 3 bar – 43,5 p.s.i.

Oil Capacity: 1,69 l 15W 40

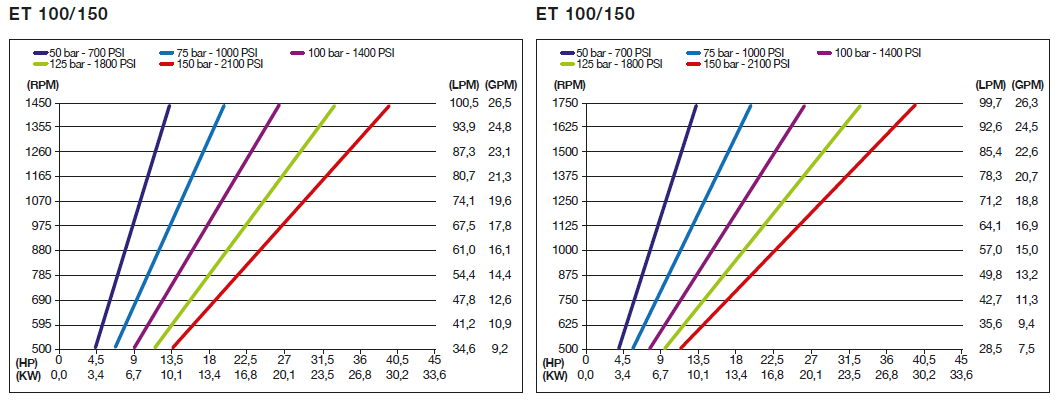

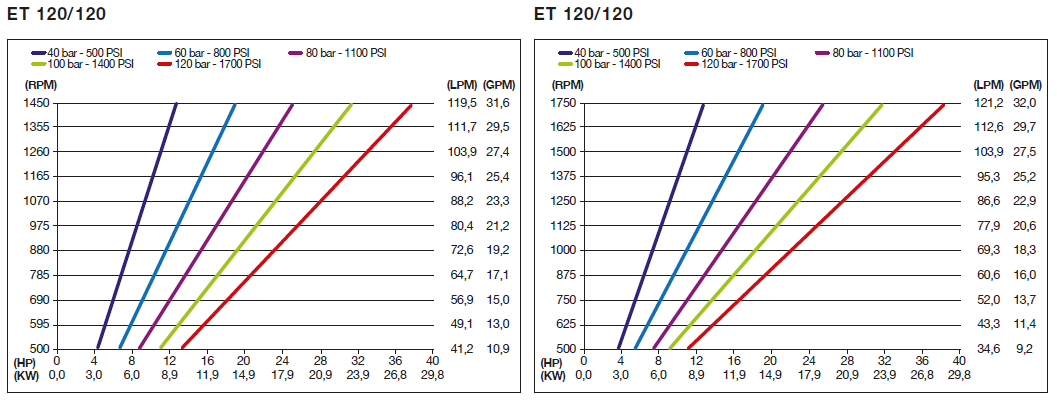

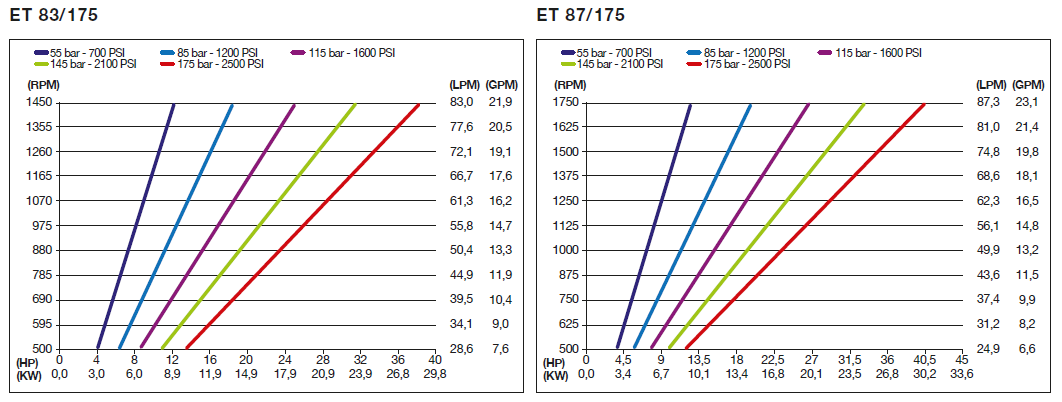

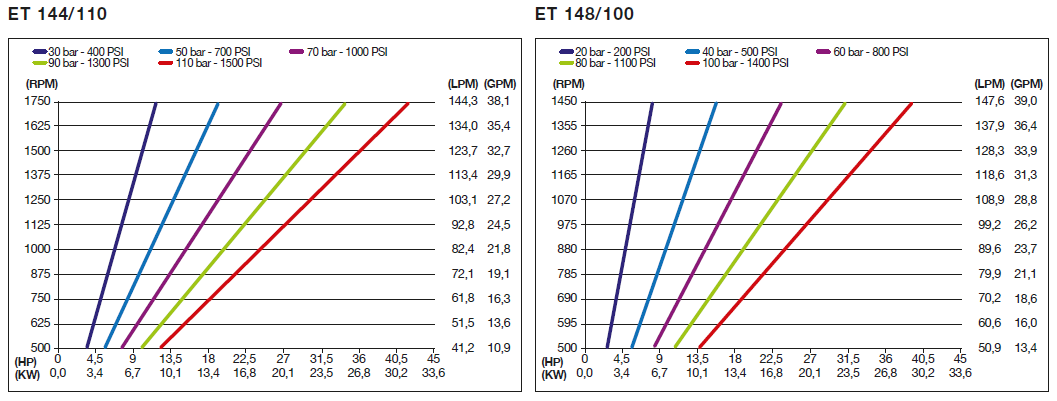

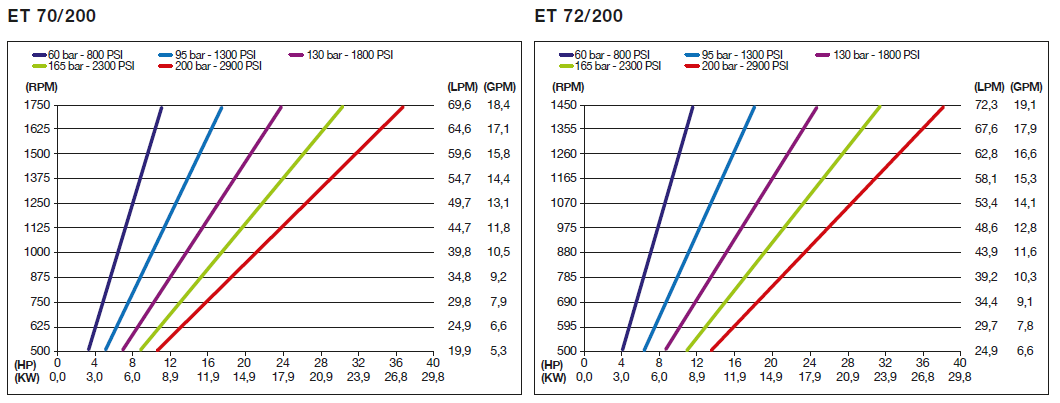

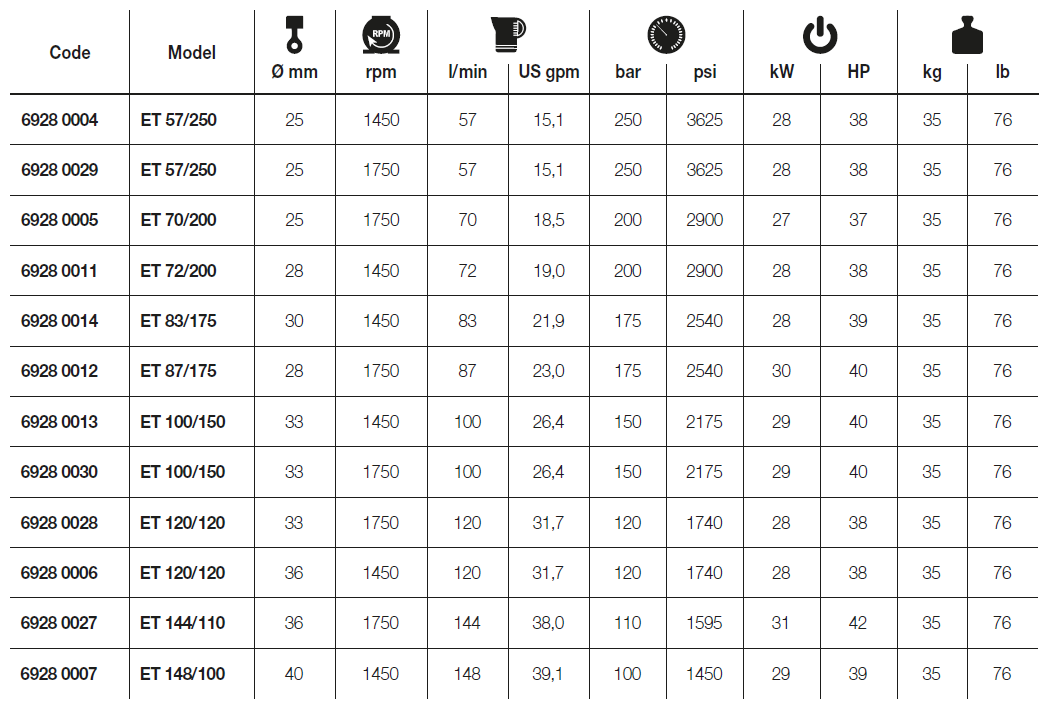

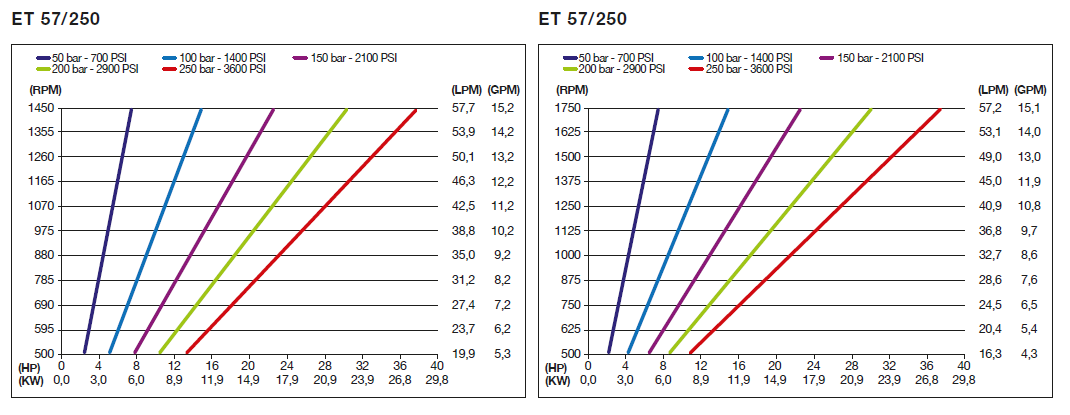

Performances refer to theoretical delivery with 100% volumetric efficiency. For continuous or heavy-duty use, contact our technical department

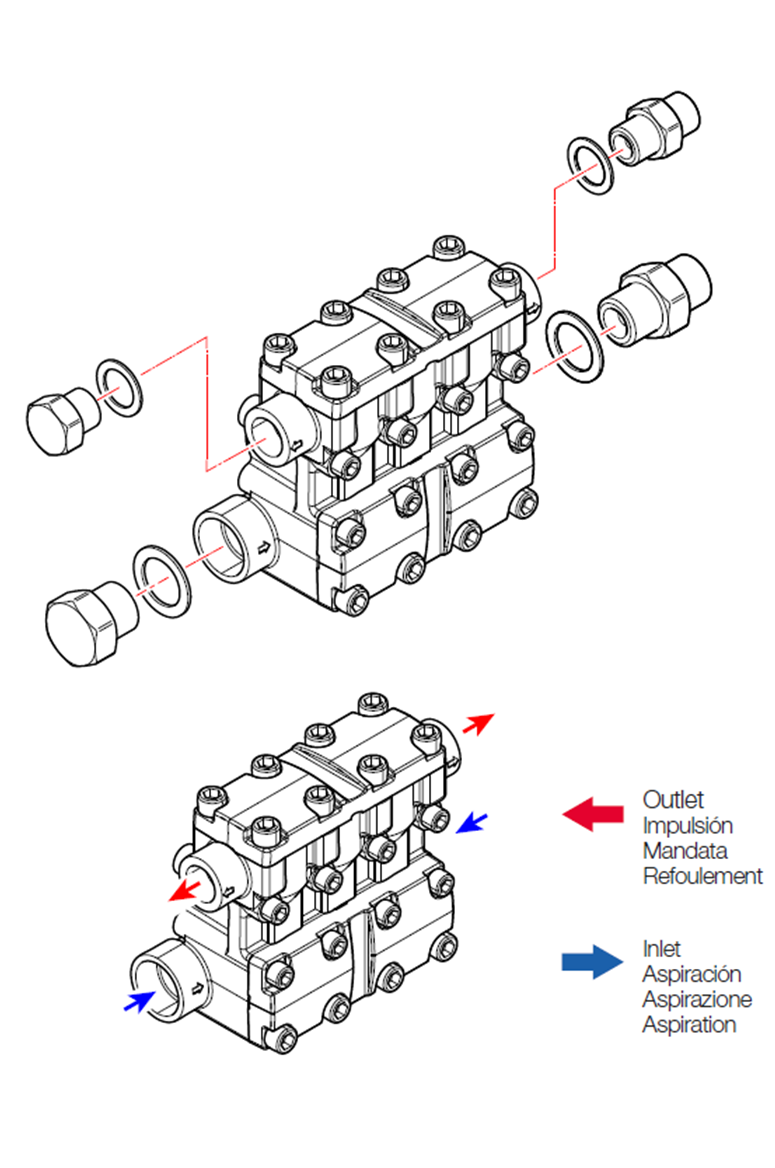

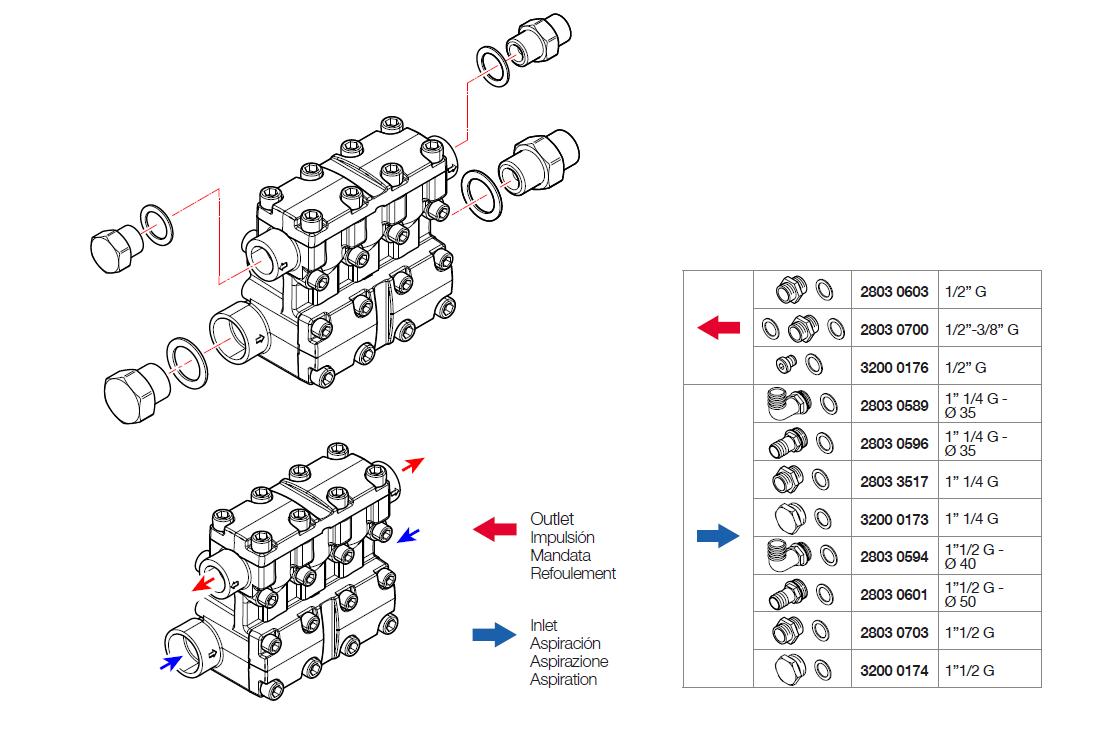

Connection Kit

documents

Download Data Sheet

Download Spare Parts

Download Manual

Download General Part
