MLR

  • Pump body: spheroidal cast iron

  • Head: spheroidal cast iron with chemical nickel plating

  • Camshaft: steel

  • Splash lubrication

  • Shaft support bearings oversized for long duration

  • Connecting rods: cast iron with thin-shell bearings

  • Guiding piston: cast iron

  • Solid ceramic plungers

  • Suction/delivery valves in stainless steel

  • Seals: high dependability, V profile

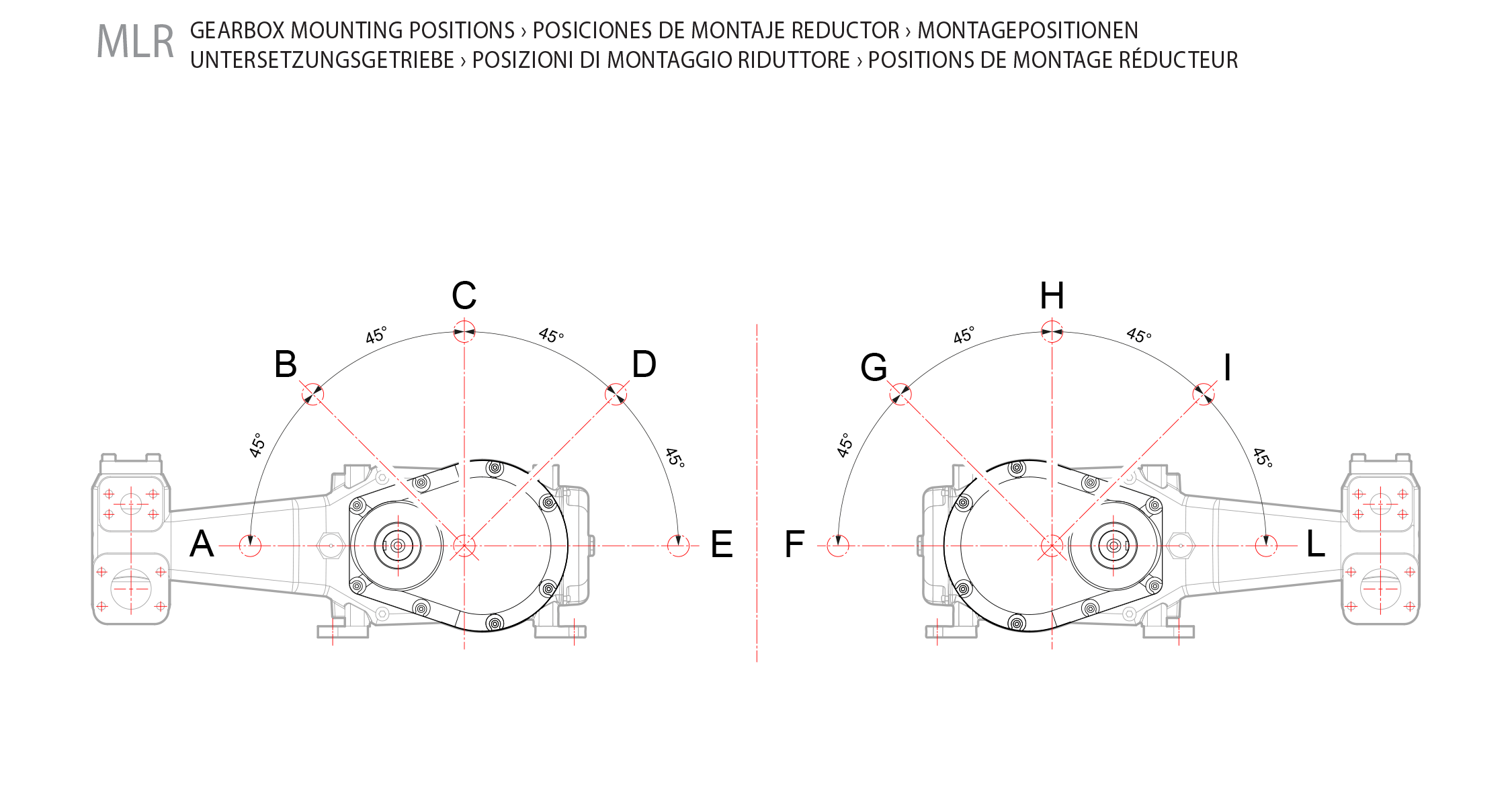

  • Versions with side gearbox available in 2 gear ratios and positionable on the right or left of the pump at 0° – 45° – 90° – 135° – 180° from the horizontal plane (see drawing)

Routine maintenance includes easy operations such as: oil check & change, check and possible replacement of seals.

Max Inlet pressure: 3 bar – 43,5 p.s.i.

Oil Capacity with Gearbox 15,96 l 80W 90

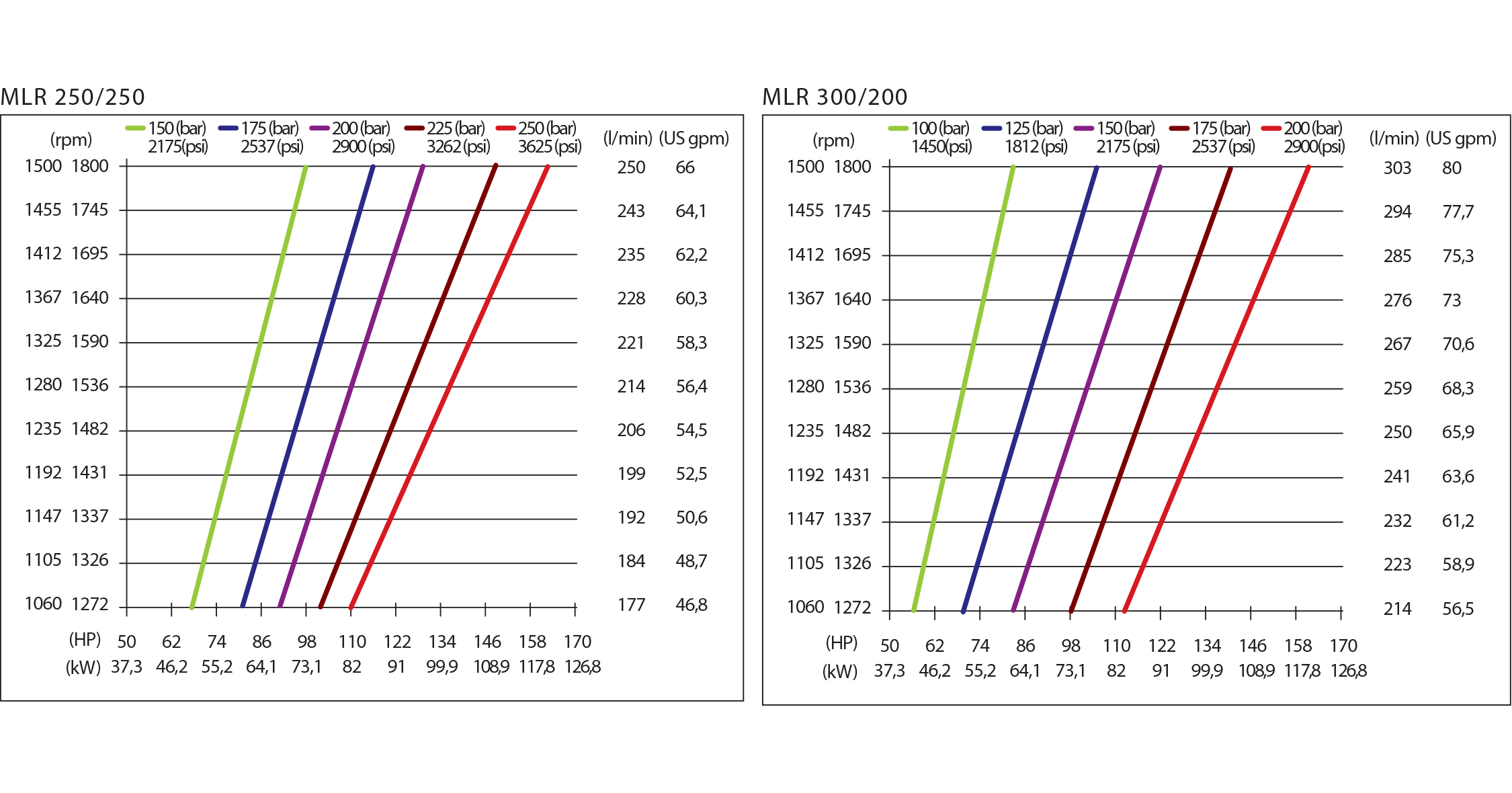

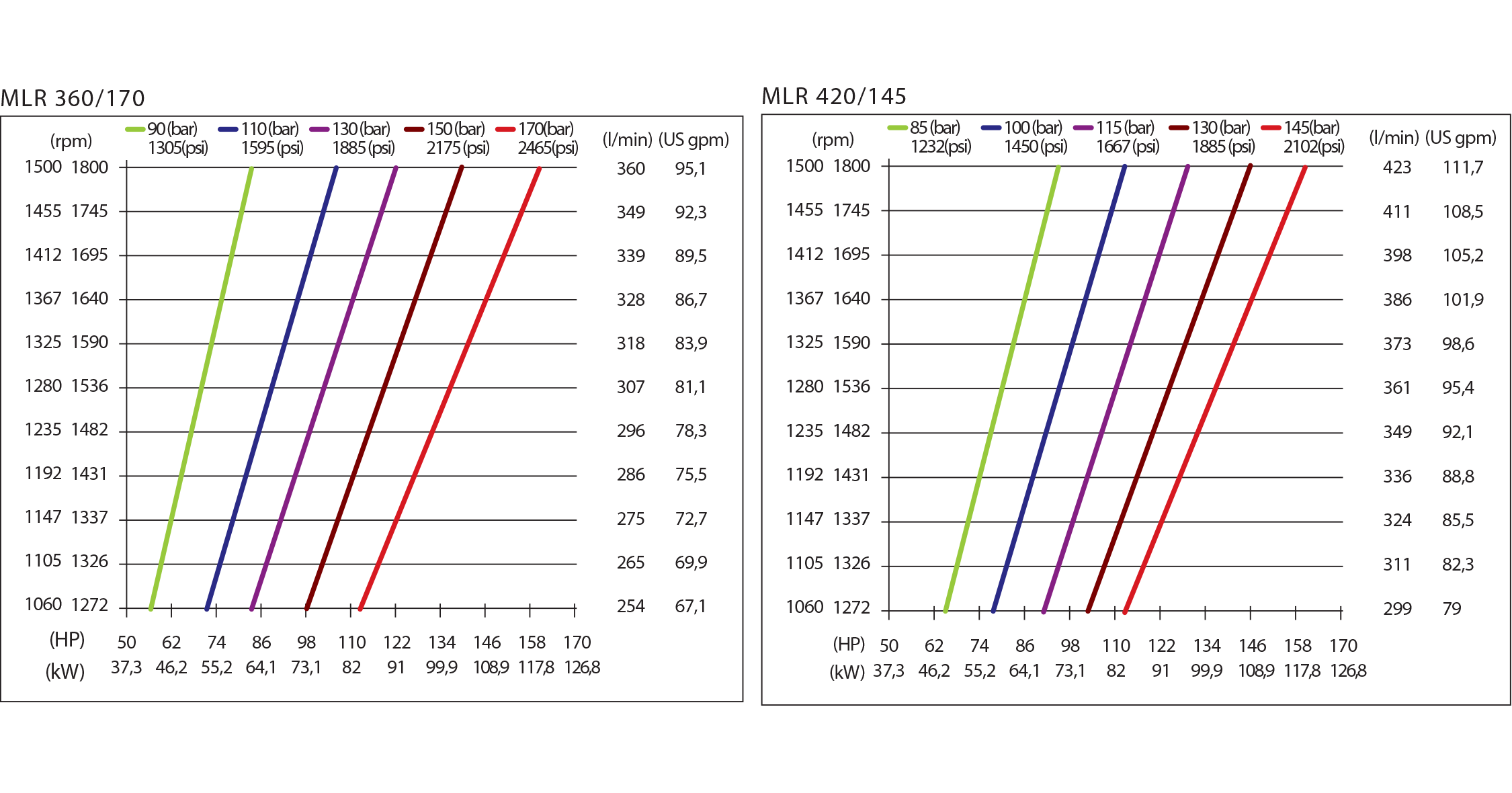

Performances refer to theoretical delivery with 100% volumetric efficiency. For continuous or heavy-duty use, contact our technical department

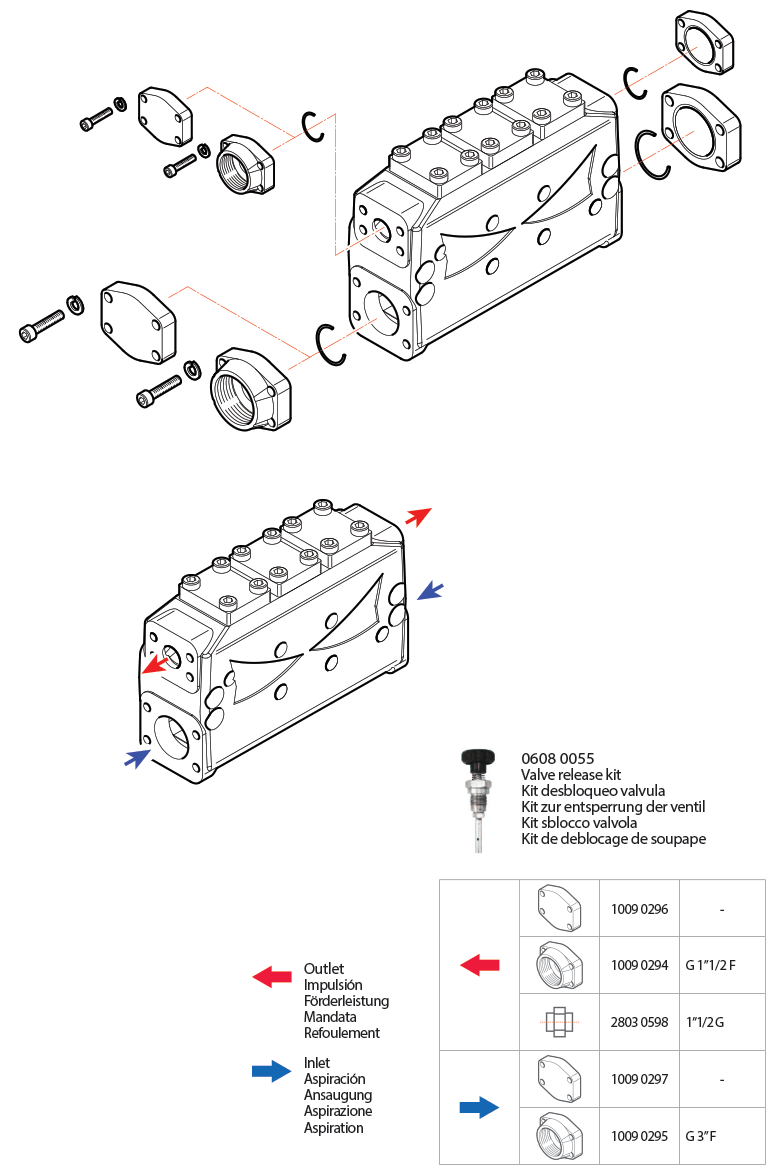

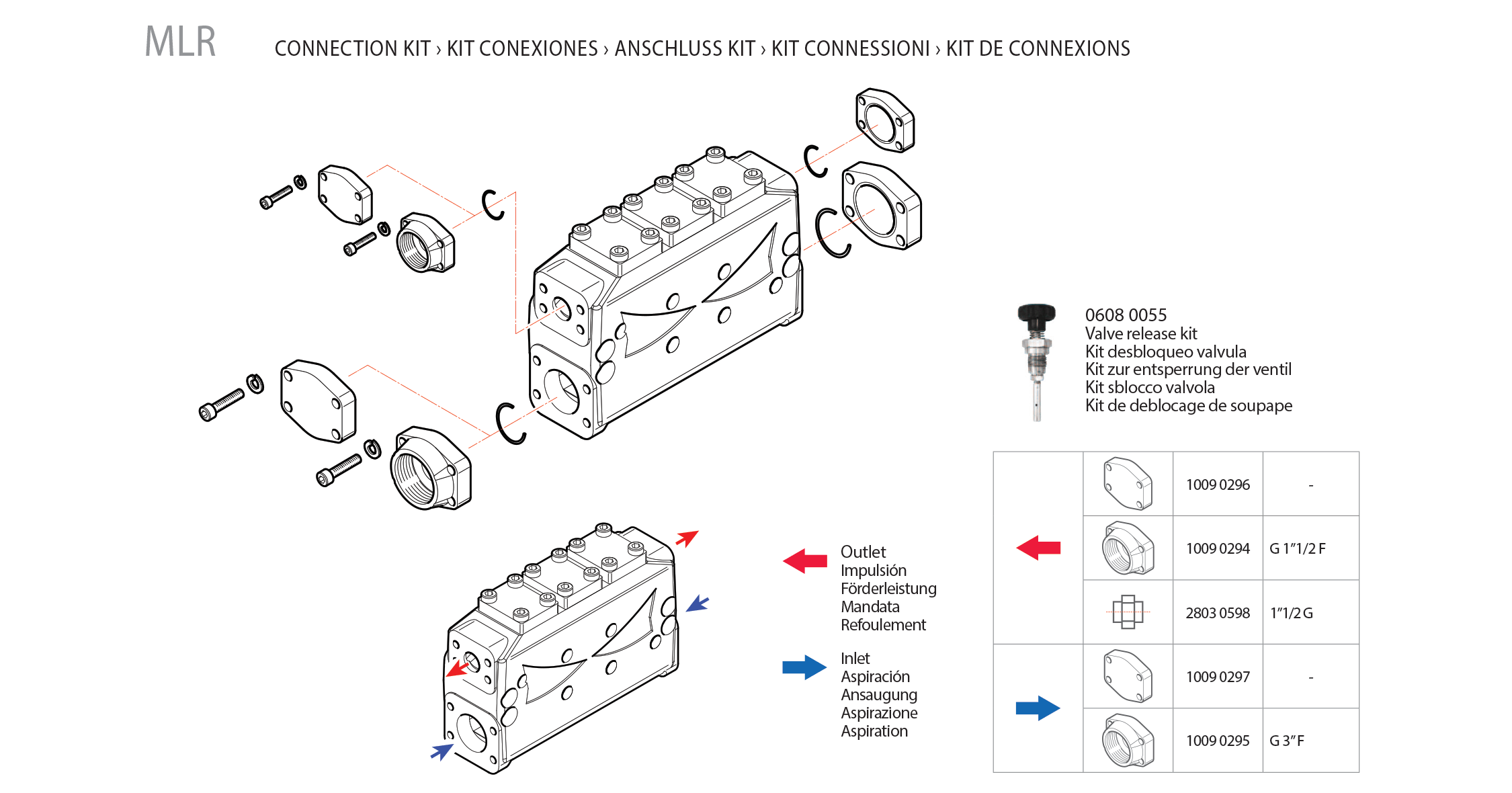

Connection Kit
