Project Description

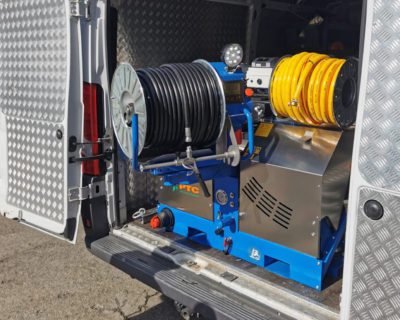

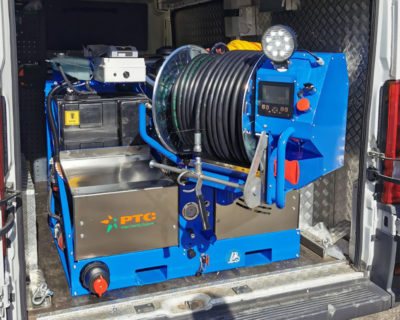

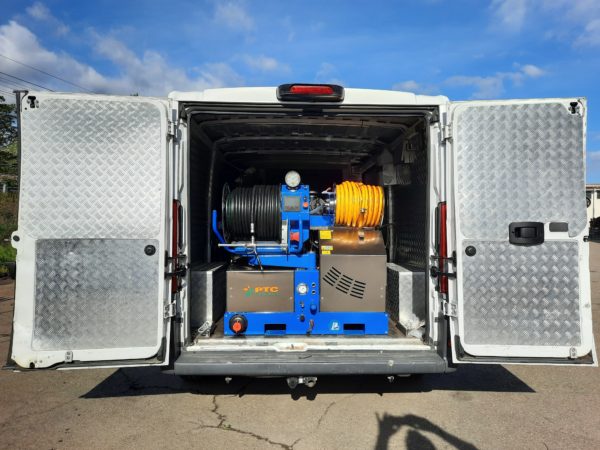

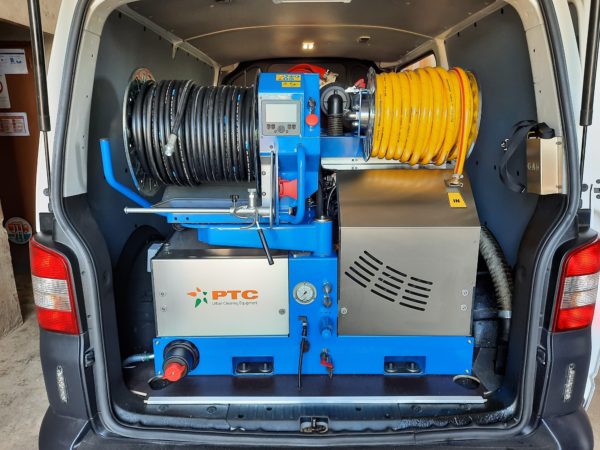

MOSES | BUILT-IN

  • Suitable from medium/large size of commercial Van like Ducato, Transit Custom, Vito, VW Transporter

  • Liquid cooled Yanmar STAGE V diesel engine, with electric starter

  • HPP pump model CLW or ELS with pulley and belt transmission

  • 90 ° + 180 ° pivot hydraulic high pressure hose reel with max capacity 120m of ½ ”hose

  • Manual hose reel complete with 35 m of low pressure hose for filling

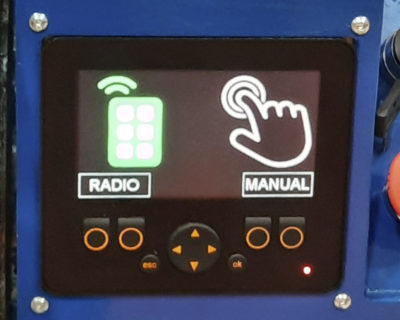

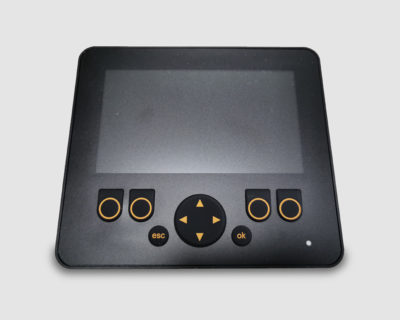

  • LCD control panel for engine and operations management (only on Stage V models)

  • Manual regulation by-pass valve, safety valve and pressure gauge

  • Multifunction remote control 6 functions

  • Automatic hose guide kit (not included)

  • 50/60/80 m di tubo HP da 3/8”, ½” or ¾ “high pressure hose (not included)

  • 400 or 800 l tanks capacity with modular tanks (not included)

APPLICATIONS

TECHNICAL FEATURES

ACCESSORIES

UNI 45 / STORZ kit for water hydrant connection

Gun kit with different type of cleaning lances

Set of pipe unblocking nozzles

Sludge pump (Venturi) kit

100 kW-12 VDC auxiliary hot water mobile generator

FEATURES

Whale Plus Pulse

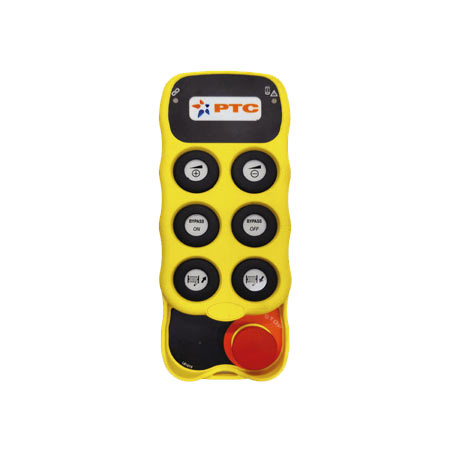

Multi-function radio control for remote control

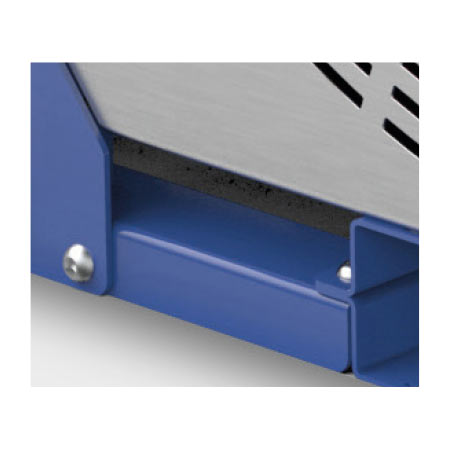

Easy movement thanks to the lower loading pockets

DOWNLOADS

DATA SHEET
